D2836 1120KV Brushless Motor CW/CCW For Fixed-wing/MultiCopter/QuadCopter Drone

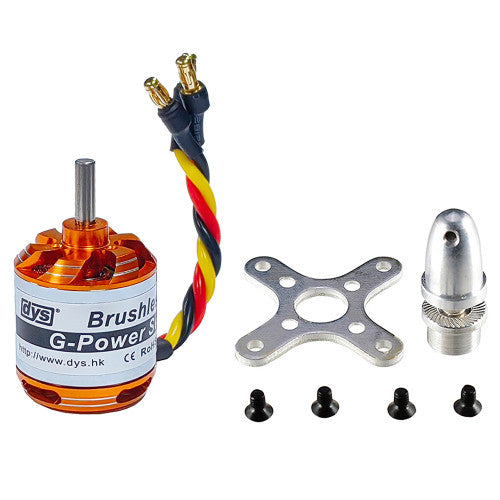

DYS D2836 1120KV Brushless Outrunner Motor (CW/CCW)

Product Description

The DYS D2836 1120KV is a high-efficiency, torque-focused power unit specifically designed for fixed-wing aircraft, quadcopters, and long-endurance RC platforms. With its 1120KV rating, this motor delivers smooth rotational power and excellent low-end torque, making it an ideal choice for aerial photography drones, gliders, and payload-carrying multirotors.

Constructed with an aluminum alloy housing and precision-balanced components, the D2836 ensures low vibration and superior heat dissipation during extended operations. Its optimized winding technology and high-quality bearings contribute to a long service life and consistent, quiet thrust performance for both hobbyists and professional builders.

Key Features

• Torque-Rich 1120KV Output: Provides stable power and high lift capacity, ideal for smooth aerial maneuvers and endurance flights.

• High Pull Capacity: Generates a maximum pull of 1130g, offering a strong thrust-to-weight ratio for a 70g motor.

• 4S Li-Po Compatibility: Supports 2-4S Li-Po batteries, allowing for flexible power configurations and increased efficiency on higher voltage setups.

• Precision Balanced Rotor: Minimizes mechanical vibration to enhance flight stability and reduce stress on the airframe and camera mounts.

• Robust 4mm Shaft: Features a heavy-duty 4.0mm shaft size to handle larger propellers and resist bending during rough landings.

• Versatile Propeller Support: Optimized for use with 11x7, 9x6, or 7x3 propellers, making it adaptable for various aircraft types.

Technical Specifications

• Brand: DYS

• Model: D2836

• KV (RPM/V): 1120KV

• Motor Size: 28 x 36 mm

• Shaft Size: 4.0 mm

• Weight: 70g

• Input Voltage: 7.4V – 14.8V (2-4S Li-Po)

• Max Current: 23.2A

• Max Thrust/Pull: 1130g

• Suggested ESC: 40A

• Suggested Propeller: 11x7, 9x6, or 7x3 inch

• Motor Type: Brushless Outrunner
