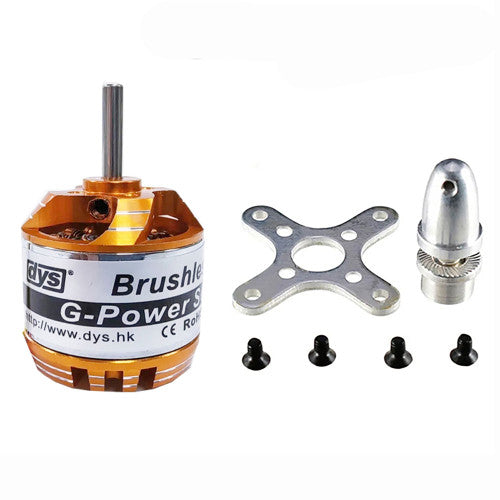

D2830 750KV Brushless Motor CW/CCW For Fixed-wing/MultiCopter/QuadCopter Drone

DYS D2830 750KV Brushless Outrunner Motor (CW/CCW)

Product Description

The DYS D2830 750KV is a high-torque, low-RPM brushless outrunner motor specifically engineered for endurance-focused RC aircraft and stable aerial platforms. With its 750KV rating, this motor is optimized to drive larger propellers with ease, resulting in longer flight times, quieter operation, and superior low-speed control. This makes it an ideal choice for mapping drones, FPV cruisers, and long-distance fixed-wing aircraft.

Designed for 2S–4S Li-Po systems, it generates a steady 866g of maximum pull while weighing only 52g. The precision-balanced rotor and aluminum alloy housing work together to minimize vibrations and manage heat effectively, ensuring your drone remains stable and your electronics stay cool during extended surveying or cruising missions.

Key Features

• High-Torque 750KV Performance: Optimized for high efficiency and stable lift at lower RPMs, ideal for endurance builds.

• Large Propeller Compatibility: Supports 12x6, 10x6, or 9x6 propellers, allowing for efficient thrust delivery and heavy-lift capabilities.

• Precision-Balanced Rotor: Reduces mechanical stress and vibrations, leading to smoother camera footage and more stable flight.

• Advanced Thermal Management: The aluminum alloy body provides effective cooling even under continuous load during long-duration flights.

• Flexible Power Options: Fully compatible with 2S to 4S Li-Po batteries, giving you the flexibility to tune your build for efficiency or power.

• Durable Build: Features high-strength magnets and a robust outrunner architecture for a long service life with minimal maintenance.

Technical Specifications

• Brand: DYS

• Model: D2830

• KV (RPM/V): 750KV

• Motor Size: 28 x 30 mm

• Shaft Size: 3.17 mm

• Weight: 52g

• Input Voltage: 7.4V – 14.8V (2-4S Li-Po)

• Max Current: 12.8A

• Max Power: ~160–200W

• Max Thrust/Pull: 866g

• Suggested ESC: 30A

• Suggested Propeller: 12x6, 10x6, or 9x6 inch

• Motor Type: Brushless Outrunner

Package Includes

• 1 x D2830 750KV Brushless Motor

• 1 x Propeller Adapter & Mounting Hardware Set

Warranty Information

All products supplied by Partsbaba are genuine and original. We offer a 14-day replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.
