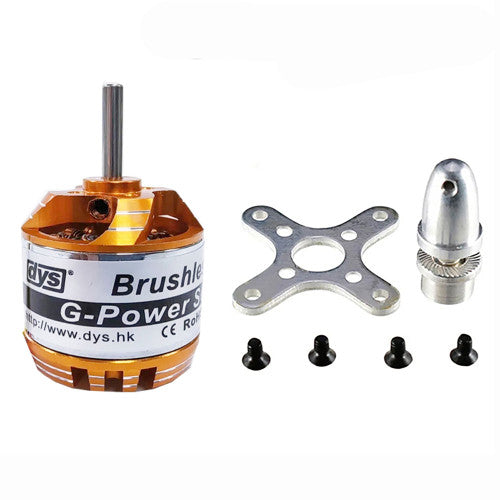

D2830 1000KV Brushless Motor CW/CCW For Fixed-wing/MultiCopter/QuadCopter Drone

DYS D2830 1000KV Brushless Outrunner Motor (CW/CCW)

Product Description

The DYS D2830 1000KV is a torque-optimized brushless outrunner motor engineered for high-efficiency propulsion in medium-sized RC aircraft. With its 1000KV rating, this motor is designed to drive larger propellers at moderate RPMs, providing the stable lift and consistent handling required for fixed-wing trainers, FPV cruisers, and endurance-focused multicopters.

Optimized for 2S–4S Li-Po battery systems, the D2830 delivers a powerful 890g of maximum pull while maintaining an energy-efficient profile. Its precision-balanced rotor and aluminum alloy housing ensure low-vibration operation and excellent heat dissipation, extending the lifespan of both the motor and the airframe during long-duration flight missions.

Key Features

• Torque-Optimized 1000KV Performance: Ideal for endurance drones and stable fixed-wing flight requiring strong low-RPM thrust.

• High Power Output: Capable of delivering between 200W and 240W of maximum power, providing reliable lift for various payloads.

• Precision Balancing: Features a factory-balanced rotor to minimize vibrations, resulting in smoother handling and reduced stress on onboard electronics.

• Enhanced Thermal Management: The durable aluminum alloy cooling body ensures reliable performance even during extended high-load operations.

• 4S Li-Po Compatibility: Offers flexible power options, supporting higher voltage setups for increased efficiency and thrust.

• Versatile Propeller Support: Specifically tuned for 10x7, 9x3.8, or 8x4 propellers, making it adaptable for a wide range of custom builds.

Technical Specifications

• Brand: DYS

• Model: D2830

• KV (RPM/V): 1000KV

• Motor Size: 28 x 30 mm

• Shaft Size: 3.17 mm

• Weight: 52g

• Input Voltage: 7.4V – 14.8V (2-4S Li-Po)

• Max Current: 14.5A

• Max Power: ~200–240W

• Max Thrust/Pull: 890g

• Suggested ESC: 30A

• Suggested Propeller: 10x7, 9x3.8, or 8x4 inch

• Motor Type: Brushless Outrunner

Package Includes

• 1 x D2830 1000KV Brushless Motor

• 1 x Propeller Adapter & Mounting Hardware Set

Warranty Information

All products supplied by Partsbaba are genuine and original. We offer a 14-day replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.
