D2826 2200KV Brushless Motor CW/CCW For Fixed-wing/MultiCopter/QuadCopter Drone

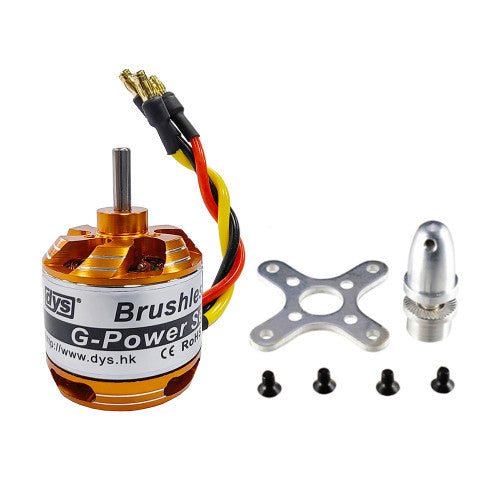

DYS D2826 2200KV Brushless Motor (CW/CCW)

Product Description

The DYS D2826 2200KV is a high-RPM brushless outrunner motor engineered for high-performance RC aircraft and racing drones. With its 2200KV rating, this motor is optimized for speed and rapid throttle response, making it an ideal choice for aerobatic fixed-wing planes and agile multicopters.

Designed for 2-3S Li-Po systems, it generates a powerful 960g of maximum pull while weighing only 50g. The motor features an aluminum alloy casing for superior heat dissipation and precision-balanced components to minimize vibration, ensuring stable flight even at high speeds.

Key Features

• High-Speed 2200KV Output: Delivers the high RPM required for racing drones and fast-moving electric planes.

• Powerful Thrust-to-Weight Ratio: Provides nearly 1kg of thrust (960g) from a compact 50g frame for aggressive climbing and maneuvers.

• Enhanced Cooling: The aluminum alloy housing improves airflow and cooling during extended high-throttle flights.

• Precision Engineering: High-strength magnets and a balanced rotor ensure stable torque and reduced mechanical wear.

• High Current Capacity: Designed to handle a max current of 31.5A, providing the burst power needed for demanding aerobatics.

• Versatile Mounting: Features a standard 28x26mm size and 3.17mm shaft, compatible with 7x3 or 7x4 propellers.

Technical Specifications

• Brand: DYS

• Model: D2826

• KV (RPM/V): 2200KV

• Motor Size: 28 x 26 mm

• Shaft Size: 3.17 mm

• Weight: 50g

• Input Voltage: 7.4V – 11.1V (2-3S Li-Po)

• Max Current: 31.5A

• Max Thrust/Pull: 960g

• Suggested ESC: 40A

• Suggested Propeller: 7x4 or 7x3 inch

• Motor Type: Brushless Outrunner

Package Includes

• 1 x D2826 2200KV Brushless Motor

• 1 x Propeller Adapter & Mounting Hardware Set
