D2822 1800KV Brushless Motor CW/CCW For Fixed-wing/MultiCopter/QuadCopter Drone

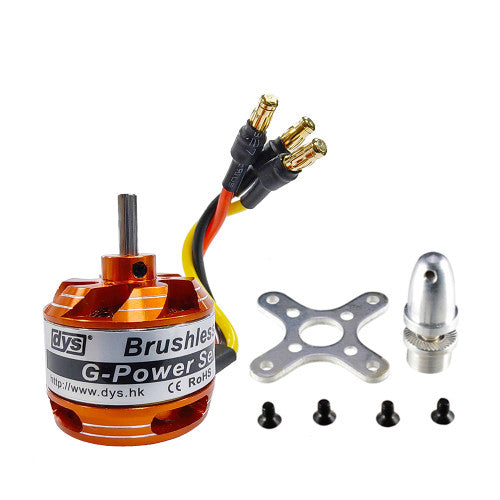

DYS D2822 1800KV Brushless Motor (CW/CCW)

Product Description

The DYS D2822 1800KV is a precision-engineered brushless outrunner motor designed to deliver a balanced blend of thrust and efficiency. With an 1800KV rating, this motor is highly versatile, providing enough torque for stable cruising while maintaining the responsiveness needed for agile flight maneuvers.

Optimized for 2-3S Li-Po power systems, it generates a significant 660g of maximum pull while maintaining a compact 38g weight. The motor features high-quality copper windings and precision bearings to ensure reduced heat generation and smooth operation, making it an ideal choice for mid-power fixed-wing aircraft and multicopter builds.

Key Features

• Versatile 1800KV Performance: Offers a strong combination of lifting power and smooth throttle response for various aircraft types.

• Efficient Outrunner Design: Minimizes vibration and heat buildup, ensuring consistent power delivery during extended flight sessions.

• High Power-to-Weight Ratio: Produces up to 660g of thrust from a lightweight 38g frame for improved aircraft efficiency.

• Durable Construction: Built with precision bearings and robust windings designed for a long operational lifespan.

• Broad Compatibility: The 28x22mm size and 3.17mm shaft are compatible with 7x3 or 8x4 propellers and a wide range of DIY frames.

Technical Specifications

• Brand: DYS

• Model: D2822

• KV (RPM/V): 1800KV

• Motor Size: 28 x 22 mm

• Shaft Size: 3.17 mm

• Weight: 38g

• Input Voltage: 7.4V – 11.1V (2-3S Li-Po)

• Max Current: 16.6A

• Max Thrust/Pull: 660g

• Suggested ESC: 30A

• Suggested Propeller: 8x4 or 7x3 inch

• Motor Type: Brushless Outrunner

Package Includes

• 1 x D2822 1800KV Brushless Motor

• 1 x Propeller Adapter & Mounting Hardware Set

Warranty Information

All products supplied by Partsbaba are genuine and original. We offer a 14-day replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.
