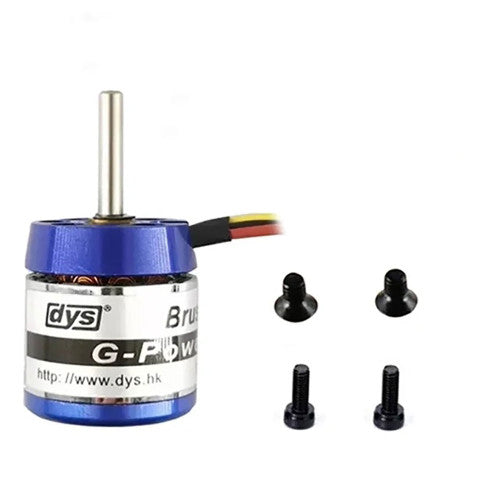

D2225 1600KV Brushless Motor CW/CCW For Fixed-wing/MultiCopter/QuadCopter Drone

DYS D2225 1600KV Brushless Motor (CW/CCW)

Product Description

The DYS D2225 1600KV is a precision-engineered brushless motor designed to provide a perfect balance of thrust, efficiency, and controlled power. With its 1600KV rating, this motor is optimized for stable, long-endurance flights, making it a reliable choice for trainers, aerial photography platforms, and lightweight RC fixed-wing aircraft.

Designed for use with 2-3S Li-Po batteries, it generates a maximum pull of 440g while weighing only 32g. The motor utilizes high-grade windings and precision bearings to ensure smooth throttle transitions and minimal vibration, which is critical for maintaining flight stability and protecting sensitive onboard electronics.

Key Features

• Balanced 1600KV Performance: Optimized for steady, controlled flight dynamics in both fixed-wing and multirotor applications.

• High Efficiency: Engineered to reduce heat generation and maximize battery life, supporting longer flight durations.

• Lightweight & Robust: At just 32g, this motor provides a high power-to-weight ratio (109W max power) without sacrificing structural durability.

• Precision Balancing: Low-vibration design ensures quieter operation and reduces mechanical stress on the motor mounts and airframe.

• Wide Compatibility: Features a standard 16mm mount and 3.17mm shaft, making it an ideal fit for 7-inch propellers and various DIY drone projects.

Technical Specifications

• Brand: DYS

• Model: D2225

• KV (RPM/V): 1600KV

• Motor Size: 22 x 25 mm

• Shaft Size: 3.17 x 41 mm

• Weight: 32g

• Input Voltage: DC 7.4V – 11.1V (2-3S Li-Po)

• Maximum Power: 109W

• Max Thrust/Pull: 440g

• Suggested ESC: 18A

• Suggested Propeller: 7 inch

• Motor Mount: 16 mm

• Working Temperature: -20°C to +80°C

Package Includes

• 1 x D2225 1600KV Brushless Motor

• 1 x Propeller Adapter & Mounting Hardware
