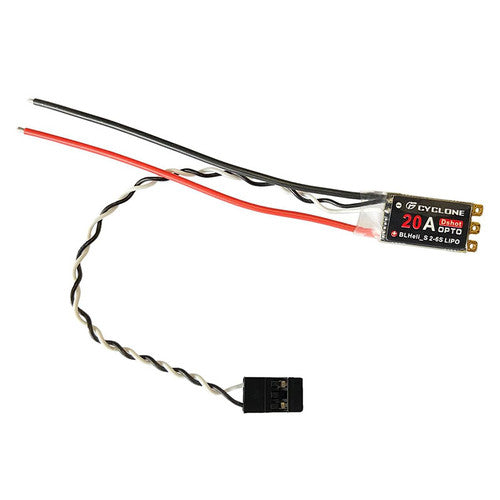

Cyclone 20A BLHeli_S ESC DSHOT With LED

Cyclone 20A BLHeli_S DShot ESC with LED

Product Description

The Cyclone 20A BLHeli_S ESC is a high-performance electronic speed controller engineered specifically for FPV racing and freestyle drones. Running on the optimized BLHeli_S firmware, this ESC provides ultra-smooth throttle response and precision control. It supports modern digital signals including DShot300 and DShot600, ensuring your flight controller and motors communicate with minimal latency. Despite its feather-light weight of just 4g, it is built to handle the rigors of high-speed flight, supporting 2S to 6S LiPo setups. The integrated LED not only adds a visual flare to your build but also assists in status diagnostics during setup and flight.

Key Features

• Advanced Firmware: Pre-loaded with BLHeli_S for high-resolution throttle response and compatibility with DShot300/600, Multishot, and OneShot125.

• High Power-to-Weight: Delivers 20A continuous current while weighing only 4g, making it perfect for weight-sensitive racing builds.

• 6S LiPo Support: Versatile voltage range from 2S to 6S (Note: for 6S usage, motors under 1600KV are recommended).

• Integrated Status LED: Features a built-in LED for visual feedback and easier troubleshooting.

• Reliable Hardware: Powered by a high-speed SILABS processor for stable performance and rapid signal processing.

• Compact Footprint: Measuring just 24 x 12.7 x 5mm, it fits easily onto narrow drone arms.

Technical Specifications

• Brand: ReadytoSky / Cyclone

• Continuous Current: 20A

• Peak Current: 25A (up to 10 seconds)

• LiPo Battery Support: 2S - 6S

• Firmware: BLHeli_S

• Protocol Support: DShot300/600, OneShot125, MultiShot

• Processor: SILABS

• BEC Output: None (OPTO)

• Dimensions: 24 x 12.7 x 5mm

• Weight: 4g
