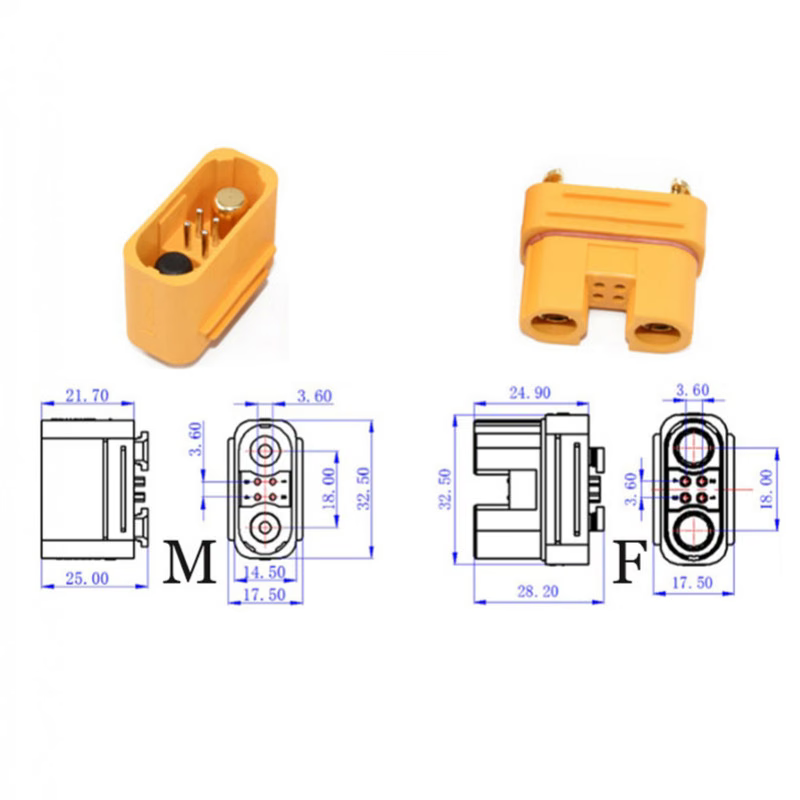

Amass AS150U Male Connector Original (AS150U-M)

Amass AS150U-M Male Connector Original – High-Current Power & Signal Connector

The Amass AS150U-M Male Connector is a high-current power and signal connector designed for demanding electrical applications such as UAVs, VTOL aircraft, lithium battery systems, motor controllers, and other industrial electronics. Its 6-pin configuration combines 2 power contacts and 4 signal contacts, allowing power and signal connections to be integrated into a single connector housing.

Designed for reliable electrical connections, the AS150U-M features copper contacts with gold-flash plating and a polyamide housing. Its straight cable-mount design is suitable for soldered connections in compatible power systems. The connector is particularly useful where a secure, compact, and high-current connection is required.

Key Features

• Original Amass Connector: Genuine AS150U-M male connector for compatible AS150U-series applications.
• Combined Power & Signal Connection: Includes 2 main power contacts and 4 signal contacts in one connector.
• High-Current Capability: Designed for high-current power applications, with a manufacturer-rated current of 70A under specified conditions.
• Gold-Flash Plated Contacts: Copper contacts with gold-flash plating help provide reliable electrical conductivity.
• Secure Cable-Mount Design: Suitable for soldered cable connections in compatible electrical systems.
• Durable Housing: Polyamide body with UL94V-0 flammability rating according to the listed specification.
• Wide Operating Temperature: Suitable for applications within the specified -20°C to +120°C operating range.

Technical Specifications

Applications

The AS150U-M male connector is suitable for a variety of high-current power and signal applications, including:

• UAV and VTOL aircraft
• FPV drone and aerial robotics power systems
• LiPo battery connections
• Motor controllers and ESC systems
• Battery charging and power distribution systems
• Industrial electronics and automation equipment
• DIY high-current electrical projects

Why Choose the Amass AS150U-M?

The Amass AS150U-M is designed for applications where both power delivery and signal connections are required in a compact connector. Its integrated 6-pin configuration helps simplify wiring while maintaining a secure connection between compatible components.

For UAV and VTOL systems, the connector can be useful for connecting battery and controller assemblies where high-current power and additional signal connections are required. Before installation, verify the connector series, polarity, pin configuration, cable size, and electrical requirements of your specific application.

Installation Information

The AS150U-M is a cable-mount connector designed for soldered electrical connections. Ensure the connector is correctly oriented and securely soldered before connecting it to a power source.

Always inspect the solder joints, confirm polarity, and verify the current and voltage requirements of the connected system. Do not exceed the connector's specified electrical limits.

Package Includes

• 1 × Amass AS150U-M Male Connector Original

Frequently Asked Questions

What is the Amass AS150U-M?

The Amass AS150U-M is a male AS150U-series connector designed for high-current power and signal connections. It features 2 power contacts and 4 signal contacts in a 6-pin configuration.

What is the current rating of the AS150U-M?

The listed manufacturer specification gives a rated current of 70A under specified conditions. Always consider the actual cable size, temperature, installation, and application requirements before selecting a connector.

Where can the AS150U-M be used?

The connector is suitable for compatible UAV, VTOL, LiPo battery, motor controller, and industrial electronics applications requiring high-current power and signal connections.

Is the AS150U-M a male connector?

Yes. The AS150U-M is the male version of the AS150U connector series.

Does the AS150U-M have signal pins?

Yes. The connector includes 4 signal contacts in addition to its 2 main power contacts.

Is this connector supplied with wires?

This listing is for the connector itself. Wires are not included unless specifically mentioned in the product package details.
