USB Connectors

The USB 3.0 B-type Female 9 Pin connector is designed for PCB mounting with a 90-degree right angle orientation. This component facilitates high-speed USB 3.0 data transfer while fitting compact circuit board layouts. Its reliable connection supports devices requiring a secure and stable USB 3.0 interface, making it suitable for various electronic assemblies and custom hardware projects.

• 9-pin USB 3.0 configuration ensures fast and efficient data communication for compatible devices
• The 90-degree right angle design optimizes space on crowded PCBs and enables easier cable routing
• Durable female connector provides consistent connection stability and longevity in electronic assemblies
• Designed specifically for PCB mounting, allowing straightforward integration into circuit boards
• Ideal for applications requiring a compact, high-performance USB 3.0 interface in custom components
• Supports backward compatibility with USB 2.0 devices where applicable

The USB Type-C 3.1 Female 6pin connector is designed for efficient power delivery and charging applications. This vertical, reversible component supports fast and reliable connections, making it ideal for integration in modern electronic devices. Its compact design ensures compatibility with various USB Type-C cables and accessories, providing seamless connectivity for power and data transmission.

• Reversible design allows easy insertion without worrying about orientation.
• 6-pin configuration supports stable power and charging performance.
• Vertical mounting suits compact device layouts and circuit boards.
• USB Type-C 3.1 standard ensures compatibility with wide range of devices and cables.
• Durable construction supports long-lasting reliable connections.
• Optimized for charging applications, providing efficient power delivery.

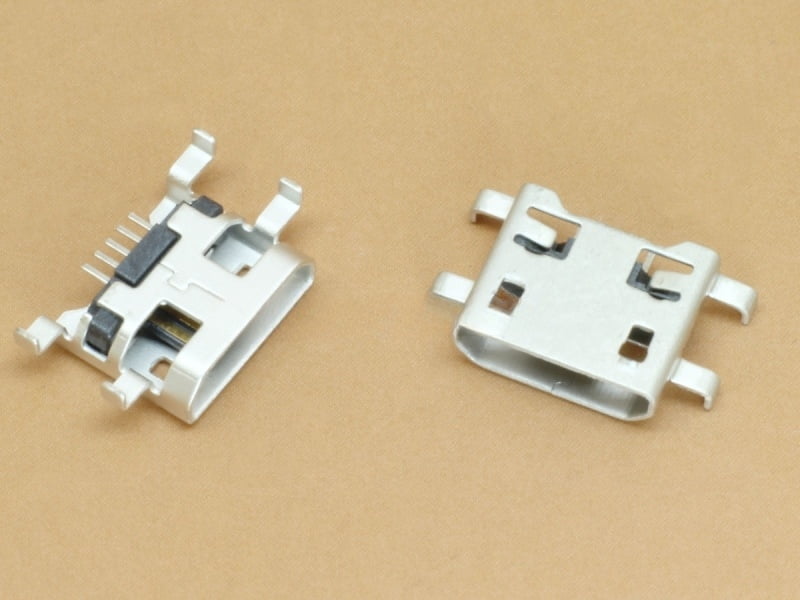

The Micro USB 10 pin Type B 3.0 SMD is a compact connector designed for seamless data transfer and charging applications. Engineered for surface-mount technology (SMT) installation, this connector supports USB 3.0 standards to ensure faster data rates and improved power delivery. Its 10-pin configuration is compatible with various electronic components requiring reliable and efficient connectivity, making it ideal for modern devices and embedded systems.

• USB 3.0 compliant for enhanced speed and performance over previous USB versions
• Compact 10-pin Type B layout suited for precise surface-mount assembly
• Designed to integrate easily into a wide range of electronic components and devices
• Supports Plug and Play functionality for quick and hassle-free connections
• Surface-mount design enables efficient PCB space utilization in compact builds
• Reliable data and power transfer suitable for embedded systems and peripherals

Widely used Plug and Play connector

Widely used Plug and Play connector

Widely used Plug and Play connector

• USB Type-C Male Connector: Provides a convenient USB Type-C interface for connecting devices, modules, and electronic circuits.
• 16-Pin Breakout Design: Breaks out the 16 pins of the Type-C connector for easy access and prototyping.
• Easy to Use: Designed for simple connection and testing without requiring complex PCB fabrication.
• PCB Mountable: Compact breakout board can be easily integrated into DIY projects, prototypes, and development setups.
• Convenient Pin Access: Clearly arranged breakout connections make soldering, wiring, and signal testing easier.
• Power & Data Applications: Suitable for USB Type-C power, charging, and data communication projects, depending on the circuit design.
• Compact & Lightweight: Small form factor helps save space in electronic projects and prototypes.
• Versatile Applications: Ideal for Arduino, ESP32, microcontroller projects, DIY electronics, USB interfaces, and custom circuits.
• Prototype Friendly: Useful for engineers, students, makers, and electronics hobbyists for quick USB Type-C experimentation.
• Easy Integration: Can be connected to jumper wires, headers, or other components for flexible project development.

Widely used Plug and Play connector

Reliable USB 2.0 Micro USB Connector / Micro B Socket / SMD Micro USB / Micro Charging Port / Micro USB Jack / Mobile USB Port with 5 pins, model U253-051N-4BH89-S 1S. Ensures secure and fast data transmission.

Compact Efficiency with the USB 3.1 Type-C Female Connector

Bulky connectors often limit the design of slim modern gadgets. This USB 3.1 Type-C Female Connector is the perfect solution for micro-sized devices. It fits into tiny spaces because it features a compact 6-pin surface-mount design. You can now create thinner electronics while maintaining high-speed data and power.

Advanced Performance for a type c connector

The type c connector model U262-4BVC11 focuses on high-efficiency applications. It specifically handles high-voltage charging without compromising the safety of your board. Since it uses modern SMD technology, it simplifies the manufacturing of complex devices. This type c connector is a vital component for any high-tech project.

Durable Build and Performance

This Connector is designed to resist frequent cable insertions. Also, the 6-pin layout provides a stable connection for both power and data. Specifically, it ensures rapid transmission without signal interference. Consequently, the USB 3.1 Type-C Female is the best choice for high-efficiency mobile gadgets.

• Compact 6-Pin – This Connector is ideal for micro-sized devices.

• SMD Mounting – Ensures a clean and professional finish on your PCB.

• Rapid Delivery – Supports modern power standards for faster charging.

• Durable Build – The Connector resists wear and tear.

Technical Specifications

Compatibility Table

Shop the Best type c connector

Choose the USB 3.1 Type-C for your next high-efficiency application. A working type c connector ensures your device stays modern and fast. Buy the USB 3.1 Type-C Female Connector today to enhance your hardware design.

High-Speed Power with the USB 3.1 Type-C Female Connector

Slow data transfer speeds can delay your professional work. This USB 3.1 Type-C Female Connector solves that issue by enabling rapid syncing. It supports modern power standards because it uses an advanced 6-pin technology. You can now enjoy faster charging times since this connector is built for efficiency.

Why Upgrade to a type c connector?

The type c connector is the modern standard for all high-performance devices. It specifically offers a reversible design for easier cable insertion. While older ports are slow, this type c connector handles high-bandwidth data with ease. This makes the USB 3.1 Type-C essential for modern hardware builds.

Reliable Data Transmission

The type c usb model U262-061N-4BVC10 ensures a secure PCB mount. Also, the surface-mount design allows for a cleaner assembly process. Specifically, the build quality reduces heat during fast charging cycles. Consequently, your type c usb will last through thousands of plug-in cycles.

• USB 3.1 Speed – The USB 3.1 Type-C Female Connector moves data faster than ever.

• 6-Pin SMD – Provides a stable and compact footprint on your circuit board.

• Universal Fit – Compatible with all standard Type-C cables and chargers.

• High Efficiency – Delivers consistent power to your sensitive electronic components.

Technical Specifications

Compatibility Table

Order Your type c connector Today

Get the USB Type-C Connector to future-proof your electronic devices. A reliable type c connector is the key to modern connectivity. Shop the USB Type-C Connector now for superior performance and speed.

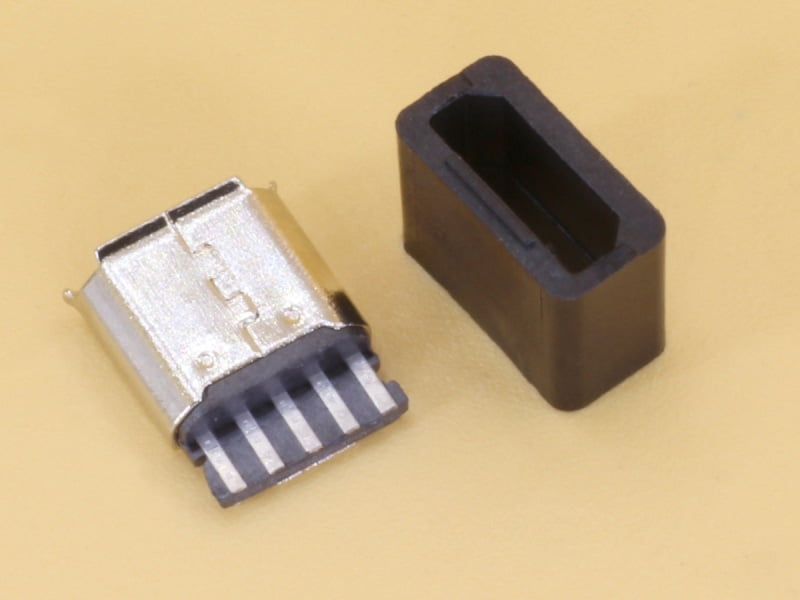

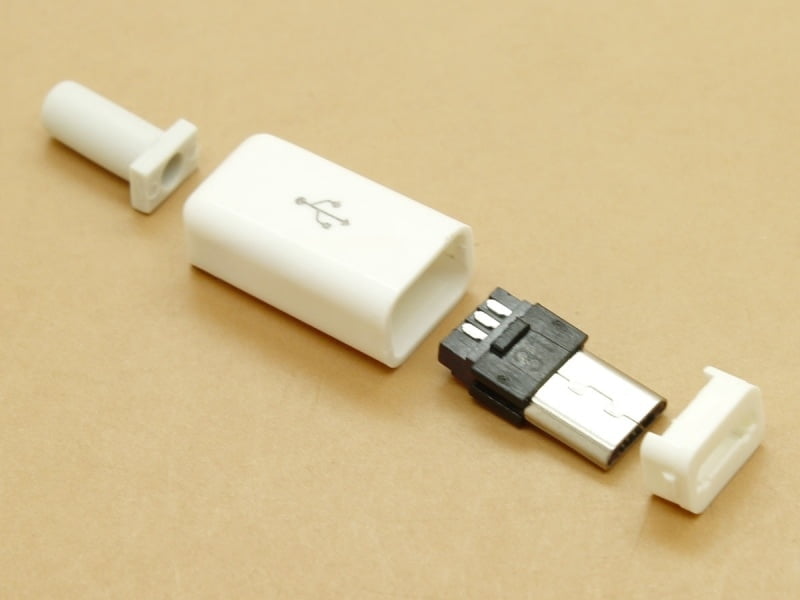

The Micro USB 2.0 - 5 pin DIY Wire Solder in white is a versatile electronic component designed for custom wiring projects and repairs. Ideal for hobbyists and professionals alike, this connector supports standard Micro USB 2.0 connectivity with five pins to ensure reliable data transfer and power delivery. Its straightforward soldering design makes it compatible with various DIY applications, including charging cables, data cables, and embedded device connections.

• Features a compact 5-pin Micro USB 2.0 interface for dependable connection quality
• White casing offers a clean, professional look suitable for visible wiring setups
• Designed for easy soldering, making it perfect for custom cable creation and repair tasks
• Supports standard Micro USB 2.0 specifications, ensuring broad compatibility across devices
• Durable construction built to maintain stable electrical performance during frequent use
• Ideal for electronics projects requiring secure and compact USB connections

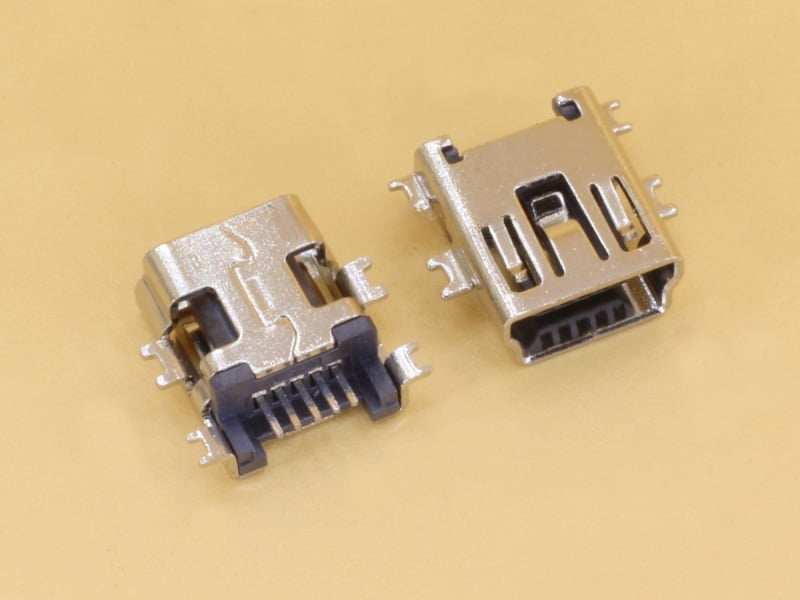

The Mini USB-B SMD Connector is a compact and reliable component designed for secure data and power transmission in electronic devices. Ideal for printed circuit board applications, this surface-mount device ensures efficient connectivity with USB-B compatible peripherals. Its durable construction supports consistent performance in various electronics, making it suitable for projects requiring dependable USB connections in a minimal footprint.

• Compact surface-mount design allows seamless integration into densely packed circuit boards
• USB-B compatibility ensures broad support for common USB peripherals and devices
• Reliable data and power transfer maintains signal integrity and device functionality
• Robust construction enhances durability and long-term operational stability
• Ideal for compact electronics where space-saving connectivity solutions are essential

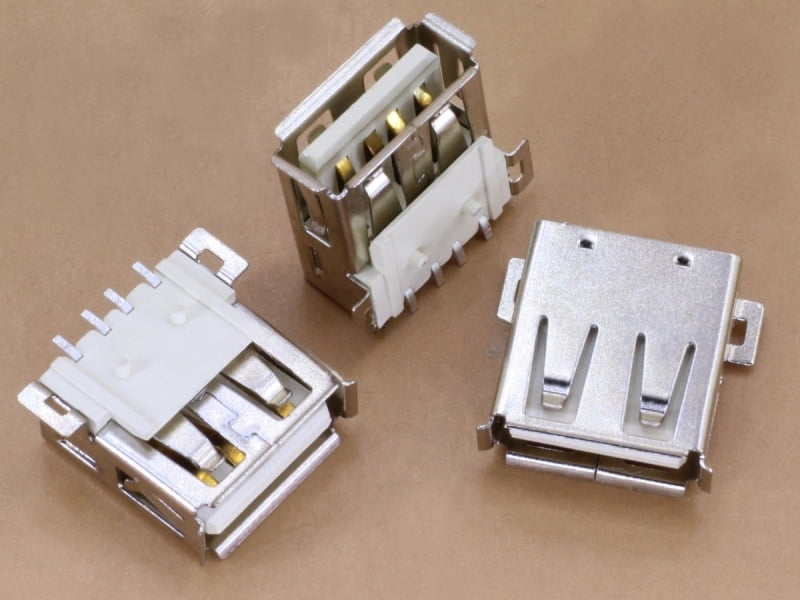

The USB A-Type Female PCB Right Angle Surface-Mount Device (SMD) connector is designed for reliable data and power connections on printed circuit boards. Its right-angle configuration suits compact designs where space is limited, offering secure attachment and easy integration. Perfect for electronics projects and devices requiring USB interfacing, it ensures compatibility with standard USB cables and supports stable connectivity with high durability.

• Right-angle design optimizes board layout by minimizing vertical space usage
• Surface-mount technology allows straightforward PCB assembly and automated soldering
• USB A-Type female port supports standard USB cable connections for widespread device compatibility
• Compact form factor fits efficiently within tight enclosures and compact electronics
• Durable construction ensures long-lasting performance in frequent connection cycles
• Reliable electrical contacts provide stable data transfer and power delivery

The USB A-Type Female PCB R/A Short Body connector is designed for seamless integration into electronic components requiring reliable USB connections. Its right-angle configuration and compact short body make it ideal for space-constrained circuit boards. This component supports standard USB A-Type interfaces, ensuring compatibility with a wide range of USB devices and applications where efficient data transfer and power delivery are essential.

• Right-angle design optimizes PCB layout by saving space and improving cable management.
• Short body profile allows for compact installation in tight electronic assemblies.
• Compatible with standard USB A-Type connectors, ensuring versatile device connectivity.
• Engineered for secure soldering onto printed circuit boards, enhancing durability and signal integrity.
• Durable construction supports frequent plug-and-play use without compromising connection quality.
• Ideal for embedded systems, computer peripherals, and custom electronics requiring dependable USB ports.

The USB B-Type Plug Male with 4 pins is designed for DIY wire soldering projects, providing a reliable connection for various electronic devices. This plug is ideal for custom cable assemblies, offering compatibility with standard USB B-Type female ports. Its straightforward design makes it suitable for applications requiring secure data and power transmission, such as printers, scanners, and external hard drives. Crafted for easy soldering, it supports precise wiring setups while ensuring durability and consistent performance.

• 4-pin USB B-Type design ensures compatibility with common USB B female connectors for seamless device interfacing.
• Constructed for DIY soldering, enabling flexible customization of cable lengths and configurations.
• The compact male plug accommodates secure and stable connections in electronic projects and repairs.
• Ideal for data transfer and power delivery in peripherals like printers, scanners, and external drives.
• Engineered for durability to withstand repeated plug-in cycles and maintain reliable contact.
• Supports precise wire attachment, facilitating accurate and efficient assembly of custom USB cables.

The USB Type-C 6P Female full SMD is a compact and reliable electronic component designed to provide a robust connection interface for modern devices. Engineered for surface mount technology (SMD), this connector supports efficient integration into printed circuit boards, ensuring durability and stable data transfer. Its 6-pin configuration suits a variety of USB Type-C applications, making it ideal for consumer electronics, computing devices, and other compatible systems requiring high-performance connectivity.

• Compact 6-pin design enables seamless integration in tight spaces and modern circuitry layouts.
• Full surface mount construction enhances mechanical stability and simplifies automated assembly processes.
• Compatible with standard USB Type-C cables and peripherals, ensuring versatile usage across devices.
• Engineered for high data transfer rates and reliable power delivery through the 6P interface.
• Durable contacts resist wear and maintain consistent connectivity over repeated insertions.
• Designed to meet industry standards for USB Type-C components, ensuring broad application compatibility.

The USB Type-C 6P USB 180 DIP 6.8mm is a high-quality electronic component designed for seamless USB Type-C connectivity in various devices. This connector supports a straightforward dual-inline package (DIP) installation with a 6.8mm pitch, ensuring reliable physical and electrical connections. Ideal for use in consumer electronics, computer peripherals, and embedded systems, it offers precise compatibility with standard USB Type-C interfaces, enabling efficient data transfer and power delivery.

• Compact 6.8mm pitch facilitates easy integration into circuit boards with DIP mounting.
• USB Type-C 6P configuration ensures stable connectivity for power and data lines.
• Designed for standard USB 180-degree orientation, optimizing board layout flexibility.
• Component-grade build quality suited for durable and consistent electronic device performance.
• Compatible with a broad range of USB Type-C applications including chargers, hubs, and data interfaces.
• Supports reliable insertion and removal cycles, maintaining connection integrity over time.

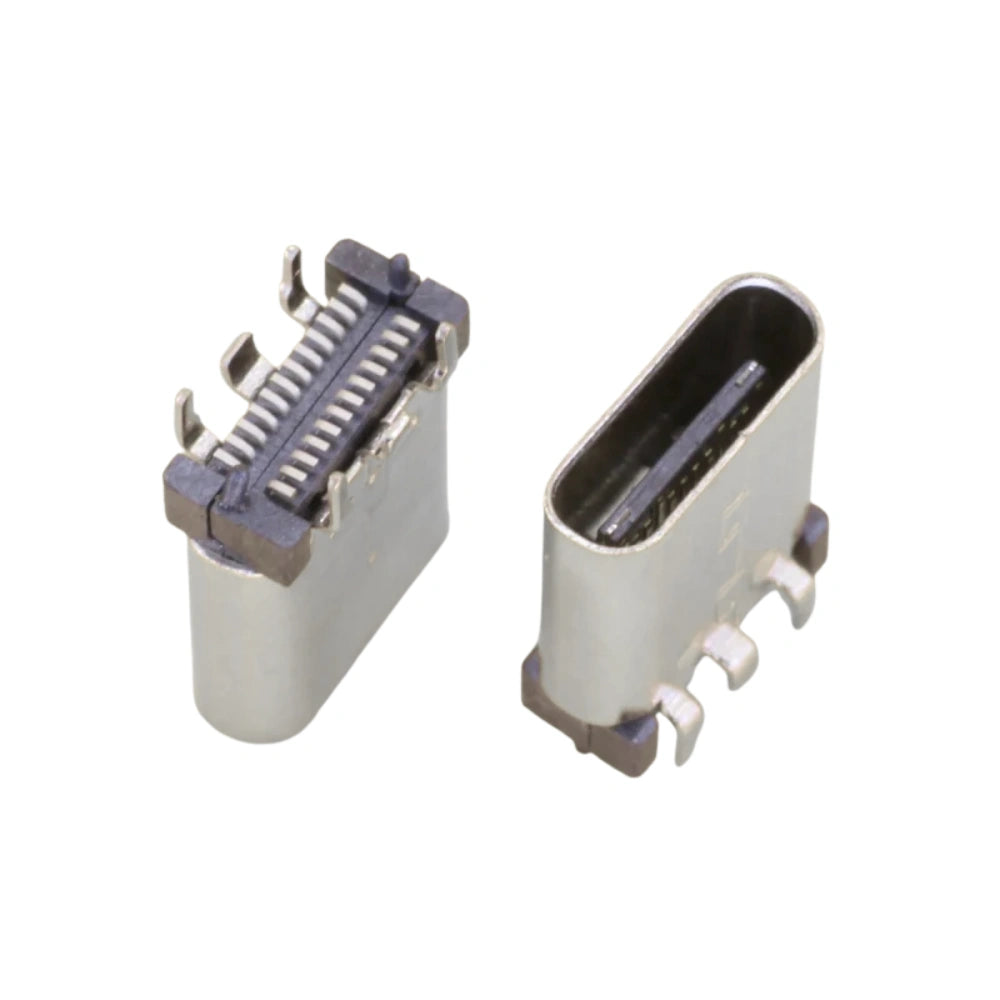

The USB Type-C Female 24 pins Connector USB 3.1 is a precision-engineered component designed to support high-speed data transfer and power delivery for USB 3.1 compatible devices. Featuring 24 pins, this connector ensures reliable connectivity and optimal performance for a wide range of applications, including laptops, smartphones, and other electronic devices that require a USB Type-C interface. Its robust design guarantees compatibility with industry standards, making it an essential part for assembling or repairing modern USB Type-C ports.

• 24-pin configuration offers efficient data and power transmission for USB 3.1 devices
• Supports high-speed data transfer rates in line with USB 3.1 specifications
• Compact female Type-C form factor fits seamlessly into tight device assemblies
• Durable construction ensures long-lasting performance and consistent connectivity
• Compatible with a broad range of electronic devices requiring USB Type-C ports
• Designed for easy integration into component assemblies and repair projects

This USB Type-C Female 6pin connector is designed for power and charging applications, featuring a reversible design for easy and hassle-free connection. As a key component in electronic devices, it supports efficient power transfer and ensures reliable compatibility with various USB Type-C cables and devices. Its compact and sturdy construction makes it suitable for integration in a wide range of consumer electronics, enhancing device usability and charging convenience.

• Reversible plug orientation simplifies connections by allowing insertion in either direction
• 6-pin configuration optimized for stable power delivery and charging efficiency
• Durable build quality ensures long-lasting performance in demanding electronic setups
• Compact size ideal for seamless integration into slim and portable devices
• Universal compatibility works with all USB Type-C cables and chargers for versatile use
• Designed for power and charging applications, supporting fast and safe energy transfer

This Micro USB 2 pin flat entry vertical connector is designed exclusively for delivering power to your circuits. Its two-pin configuration ensures a straightforward and cost-effective solution when data transfer is unnecessary. The compact vertical design makes it easy to integrate into various electronic projects, offering reliable power delivery through a standard micro USB interface.

• Two-pin layout engineered for power-only connections, minimizing complexity
• Flat entry vertical design simplifies PCB mounting in tight spaces
• Compatibility with standard micro USB cables ensures easy integration
• Ideal for powering low-voltage circuits without data transmission concerns
• Compact dimensions help maintain a streamlined product design
• Durable construction provides consistent electrical contact and long service life

This Micro USB 2 pin flat entry connector is designed exclusively for powering your circuits, offering a cost-effective solution for applications where data transfer is unnecessary. Its simple two-pin design ensures reliable power delivery while maintaining compatibility with standard Micro USB power sources. Ideal for projects requiring a straightforward power connection, this component fits seamlessly into various electronic setups.

• Efficient power supply through a dedicated 2 pin Micro USB interface
• Compact flat entry design for easy integration into tight spaces
• Cost-effective alternative to full Micro USB connectors when only power is needed
• Wide compatibility with standard Micro USB power adapters and cables
• Simplifies circuit design by focusing solely on power delivery without data lines
• Durable construction suitable for repeated connections and disconnections
• Ideal for embedded systems, DIY electronics, and power-only applications

Widely used Plug and Play connector

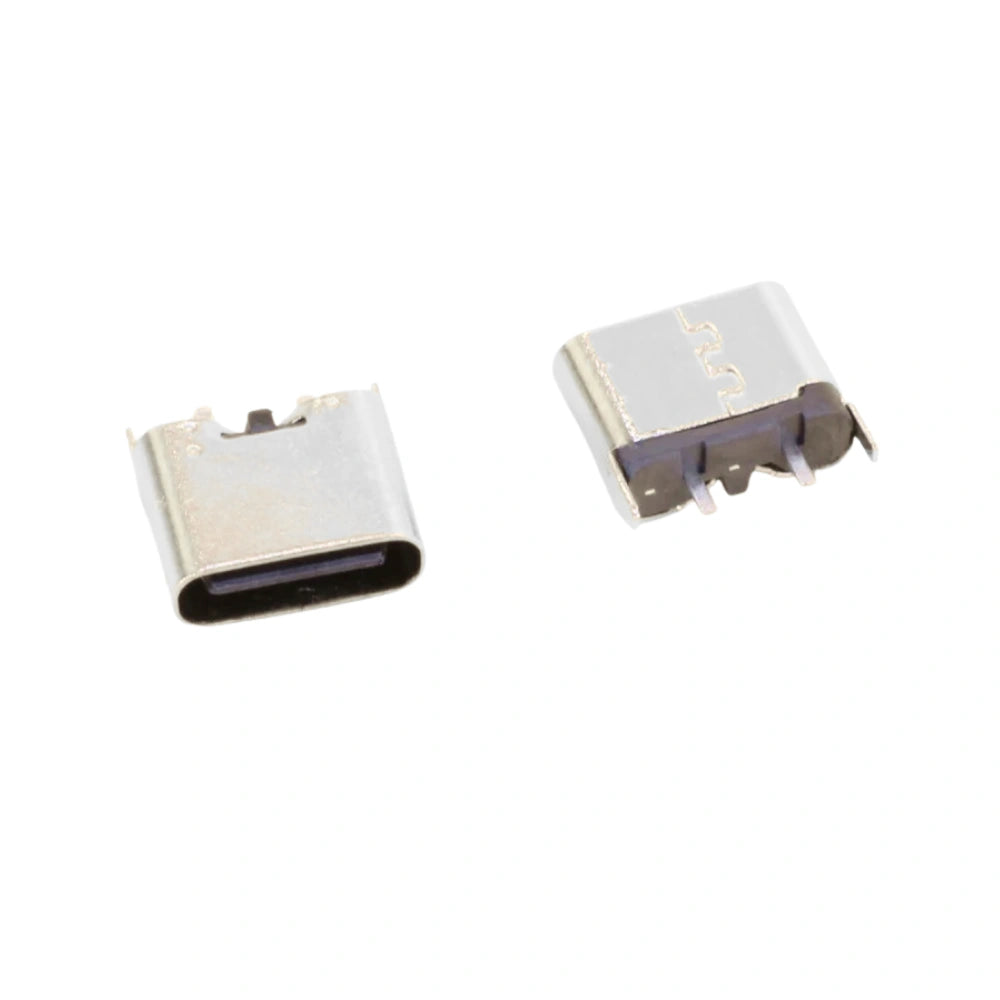

USB Type-C 2P Vertical TH Power Connector – Power Only

The USB Type-C 2P Vertical TH Power Connector is a compact USB-C socket designed for power-only applications on printed circuit boards. Its vertical through-hole (TH) mounting configuration allows the connector to be soldered directly onto a compatible PCB, making it suitable for DIY electronics, embedded systems, custom devices, and PCB-based power projects.

This 2P USB Type-C connector is designed for basic power input rather than USB data communication. It provides a convenient USB Type-C interface for projects that require a compact power connection while keeping the connector mounted directly to the circuit board.

Key Features

• USB Type-C Interface: Provides a modern USB-C connection for compatible power-input applications.
• 2-Pin Configuration: Designed for basic two-point power connection.
• Vertical Through-Hole Mounting: Designed to be soldered directly into compatible PCB holes.
• Power Only: Intended for power input and does not provide USB data-transfer functionality.
• PCB Mount Design: Provides a secure board-mounted connection for custom electronics.
• Compact Construction: Suitable for space-conscious PCB designs and small electronic devices.

Applications

The USB-C 2P vertical TH connector can be used in a variety of power-only electronic applications, including:

• DIY electronics projects
• Custom PCB designs
• Embedded electronic devices
• Microcontroller projects
• Battery-powered electronics
• LED and lighting projects
• Small charging and power circuits
• Custom electronic enclosures
• PCB repair and replacement applications

What Does Vertical TH Mean?

TH stands for Through-Hole. Unlike surface-mount connectors, this connector is designed with terminals that pass through holes in the PCB and are soldered on the opposite side.

The vertical mounting orientation positions the USB Type-C interface perpendicular to the PCB surface. This configuration can be useful when the USB-C port needs to face outward from a PCB or enclosure.

Power-Only USB Type-C Connector

This product is specifically intended for power-only applications. The 2P configuration does not provide the complete pin configuration required for standard USB data communication.

It should therefore be used when a project requires USB Type-C as a convenient power-input interface rather than a full USB data connection.

Do not assume that this connector supports USB 3.x, USB 2.0 data transfer, USB Power Delivery, or fast-charging protocols. Those functions require additional electrical and circuit configurations.

Product Specifications

Installation Information

Install the connector into the corresponding PCB through-holes and solder the terminals securely. Make sure the connector is correctly aligned with the PCB footprint before soldering.

Before connecting a USB-C power source, verify the positive and negative connections, PCB layout, input voltage, and current requirements of the circuit. Incorrect wiring or an incompatible PCB footprint can result in malfunction or component damage.

For a reliable installation, ensure that the connector is mechanically secure and that there are no unintended solder bridges between adjacent contacts.

Package Includes

• 1 × USB Type-C 2P Vertical TH Power Connector

Frequently Asked Questions

What is a USB Type-C 2P Vertical TH connector?

It is a two-pin USB Type-C connector designed for power-only applications and vertical through-hole mounting on a PCB.

What does TH mean?

TH means Through-Hole. The connector's terminals pass through holes in the PCB and are soldered to the board.

Is this connector for power only?

Yes. This 2P version is intended for power applications and does not provide standard USB data-transfer functionality.

What is the benefit of vertical mounting?

Vertical mounting positions the USB-C port perpendicular to the PCB, which can be useful when the connector needs to face outward from a circuit board or enclosure.

Does this connector support USB-C Power Delivery?

Do not assume USB Power Delivery or fast charging support. This is a 2P power-only connector and should be used according to the electrical design and specifications of the complete circuit.

Can I use this connector on any PCB?

No. The PCB must have a compatible through-hole footprint and electrical layout. Check the connector dimensions and pin configuration before designing or modifying the PCB.

Widely used Plug and Play connector

• USB Type-C Male Connector: Designed for USB Type-C interface applications and electronic device connectivity.
• 16-Pin Configuration: Features 16 pins for reliable signal and power connections.
• Vertical Mount Design: Designed for vertical PCB mounting, making it suitable for compact electronic assemblies.
• PCB Mountable: Can be directly soldered onto a PCB for secure and stable installation.
• Compact Size: Space-saving design is ideal for portable devices, development boards, and custom electronic projects.
• Reliable Connection: Provides stable electrical contact for USB Type-C power and data applications.
• Versatile Applications: Suitable for DIY electronics, charging circuits, development boards, embedded projects, and custom PCB designs.
• Durable Construction: Built for repeated connections and dependable performance in electronic applications.
• Easy to Integrate: Suitable for use in custom-designed PCBs and electronic prototypes.
• Ideal for DIY Projects: A practical choice for electronics hobbyists, engineers, and PCB designers.

Compact USB 2.0 Micro USB Connector / Micro B Socket / SMD Micro USB / Micro Charging Port / Micro USB Jack / Mobile USB Port with a 5-pin surface-mount design, model U254-051T 4BH82-S 2S. Ensures durability and high-speed data transfer.

The USB 2.0 Male Type-A USB Connector SMD 4Pin (U216-041N-1WS82-5) is a compact surface-mount USB connector designed for reliable power and high-speed data transfer in PCB-based electronic devices. Featuring a 4-pin USB 2.0 Type-A male interface, it provides secure PCB mounting, excellent electrical performance, and durability for embedded systems, development boards, industrial equipment, and custom USB-enabled electronics projects.

Precision Connectivity with the USB 2.0 Micro Type-B Female Connector

Loose connections often cause intermittent charging in older devices. This USB 2.0 Micro Type-B Female Connector fixes that problem by providing a tight fit. It stays secure because the tin flat design improves the contact surface. You can now enjoy a reliable link for both charging and data syncing.

Benefits of a New type b connector

A fresh type b connector is the most cost-effective way to repair a mobile device. It specifically targets the common failure points in micro-USB ports. While other ports might wobble, this 5-pin SMD version remains stable. Using this type b connector ensures your portable electronics stay functional for years.

Lightweight and Stable Design

The Connector is ideal for micro-sized device connectivity. Also, the lack of SUS support makes it a lighter option for mobile builds. Specifically, the tin flat terminals allow for a lower profile on your circuit board. Consequently, the Connector is perfect for compact electronic repairs.

• Tin Flat Design – The Connector provides a low-profile connection.

• 5-Pin SMD – Supports all standard micro-USB functions for data and power.

• Lightweight Build – Perfect for portable electronics where weight is a factor.

• Stable Solder – This Connector ensures a long-lasting repair.

Technical Specifications

Compatibility Table

Fix Your Device with a type b connector

Regain total control over your charging with the Connector. A reliable type b connector is essential for any mobile user. Order the USB 2.0 Micro Type-B Female Connector now to restore your device to factory standards.

The MUP-U513 Micro USB Female Connector (5 Pin) is a compact and dependable solution for connecting small electronic devices. This 5-pin USB socket supports both data transfer and power delivery, making it ideal for a variety of applications that require secure and stable connections. Its design ensures compatibility with standard Micro USB cables, perfect for embedded systems and portable gadgets.

• Five-pin configuration provides reliable data and power connections in tight spaces.
• Compact size fits seamlessly into compact electronic designs without sacrificing performance.
• Durable construction ensures long-lasting functionality in demanding environments.
• Standard Micro USB compatibility allows easy integration with widely available cables and accessories.
• Ideal for embedded systems and portable electronics requiring efficient power and data interfaces.

Reliable Charging with the USB 2.0 Micro Type-B Female Connector

Broken charging ports can ruin a mobile device instantly. This USB 2.0 Micro Type-B Female Connector offers a durable solution for hardware repairs. It ensures steady power delivery because the 5-pin design is highly conductive. You can now restore your device functionality since this part fits standard micro-USB interfaces perfectly.

Versatile Use for any type b connector

This type b connector is ideal for mobile phones, tablets, and DIY electronics. It specifically features tin scrolls to improve the strength of your solder joints. While other ports might wobble, this SMD version stays firmly attached to the PCB. Using a fresh type b connector prevents intermittent charging issues.

Precision Build and Performance

The USB 2.0 Micro Type-B Female Connector uses high-quality materials for a longer lifespan. Also, the compact SMD layout saves valuable space on your circuit board. Specifically, this model excludes SUS support to suit specialized manufacturing needs. Consequently, the USB Type-B Female Connector remains a top choice for repair technicians.

• SMD Design – This USB Type-B Female Connector fits small electronic devices easily.

• 5-Pin Layout – Supports both high-speed data transfer and power delivery.

• Tin Scrolls – Enhances the soldering bond for a more reliable connection.

• Mobile Ready – Ideal for replacing worn-out ports on portable gadgets.

Technical Specifications

Compatibility Table

Restore Power with a New type b connector

Replace your faulty port with the USB 2.0 Micro Type-B connector today. A working type b connector ensures your data stays synced and your battery stays full. Choose the type-B Female Connector for a professional-grade repair.

Surface mount USB 3.0 Type-A female connector with 9 pins. Compatible with USB 3.0 devices and motherboards.
