Header Strips

Header Strips at Partsbaba.com – Essential PCB Connectors for Electronics & Prototyping

Explore Header Strips at Partsbaba.com, a versatile range of PCB connector components used to create reliable connections between printed circuit boards, wires, modules, development boards, and electronic components.

Header strips are among the most commonly used interconnection components in electronics. Their simple design, compact size, and availability in different pin counts, pitches, orientations, and mounting styles make them useful for everything from prototypes and DIY projects to commercial electronic assemblies.

Whether you're an electronics engineer, PCB designer, technician, repair professional, student, hobbyist, or DIY builder, the right header strip can make PCB assembly and component interconnection easier.

Explore Header Strips at Partsbaba.com

The Header Strips collection can include options for different PCB and electronic assembly requirements, such as:

• Male Header Strips
• Female Header Strips
• Single-Row Headers
• Double-Row Headers
• Multi-Row Header Strips
• Straight Pin Headers
• Right-Angle Header Strips
• PCB Pin Headers
• Breakaway Header Strips
• Through-Hole Headers
• SMD Header Connectors
• Different Pin Counts
• Different Pitch Sizes

Compatibility Tip: Before purchasing, check the pin count, pitch, row configuration, orientation, mounting type, pin length, and mating connector.

What Is a Header Strip?

A header strip is a row or multiple rows of metal pins housed in an insulating material. It is commonly mounted on a PCB to provide electrical and mechanical connections.

A basic connection can look like:

PCB → Header Strip → Jumper/Wire/Socket/Module

Header strips are often designed so they can be cut or separated into smaller sections, depending on the product design.

Common Applications of Header Strips

Header strips are widely used in:

• PCB assembly
• Electronics prototyping
• Development boards
• Arduino projects
• Raspberry Pi accessories
• Microcontroller projects
• Robotics
• Industrial electronics
• Computer hardware
• Embedded systems
• Control panels
• DIY electronics
• PCB repairs

Types of Header Strips

Male Header Strips

Male headers feature exposed pins that can connect to compatible sockets, female headers, jumper wires, or other connectors.

They are commonly used for:

• PCB connections
• Development boards
• Module connections
• Prototyping
• Jumper connections

Female Header Strips

Female headers provide receptacles for compatible male pins.

They can be useful when creating removable connections between:

PCB → Female Header → Male Header

This is common in development boards and modular electronics.

Single-Row Header Strips

Single-row headers have one row of pins and are useful where PCB space is limited.

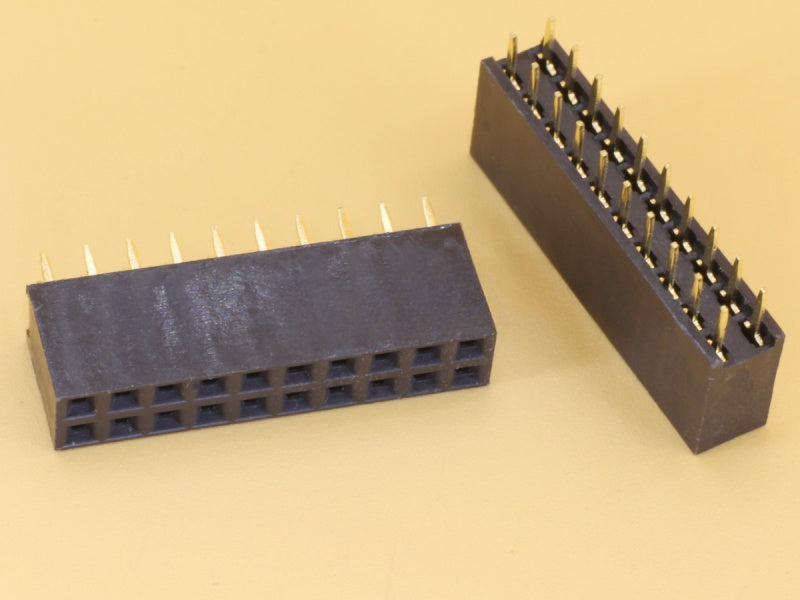

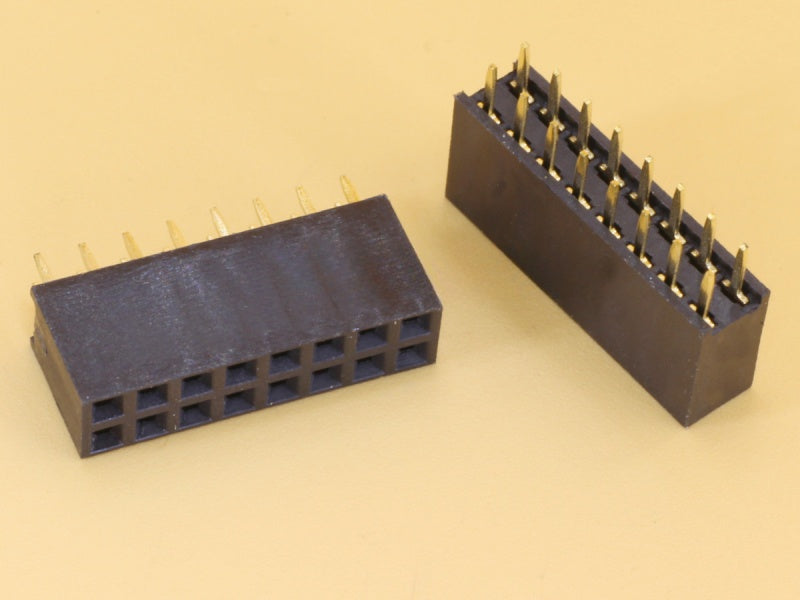

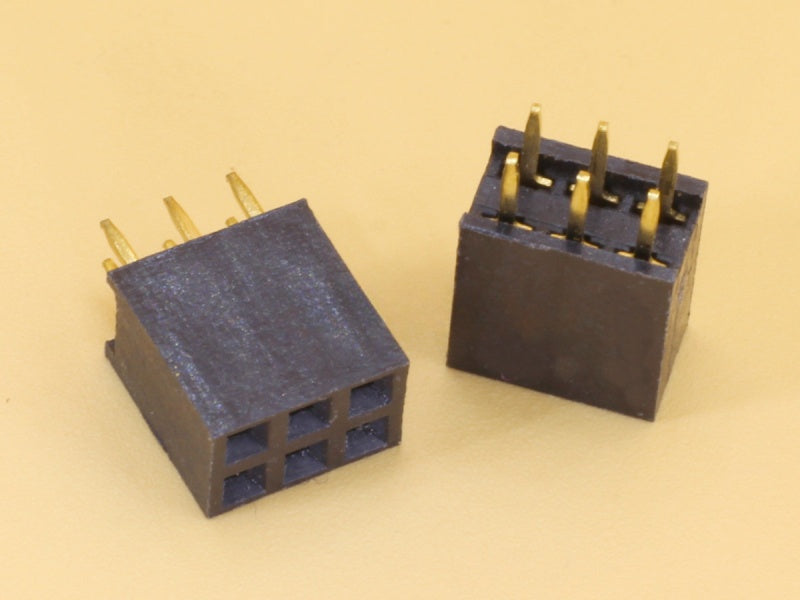

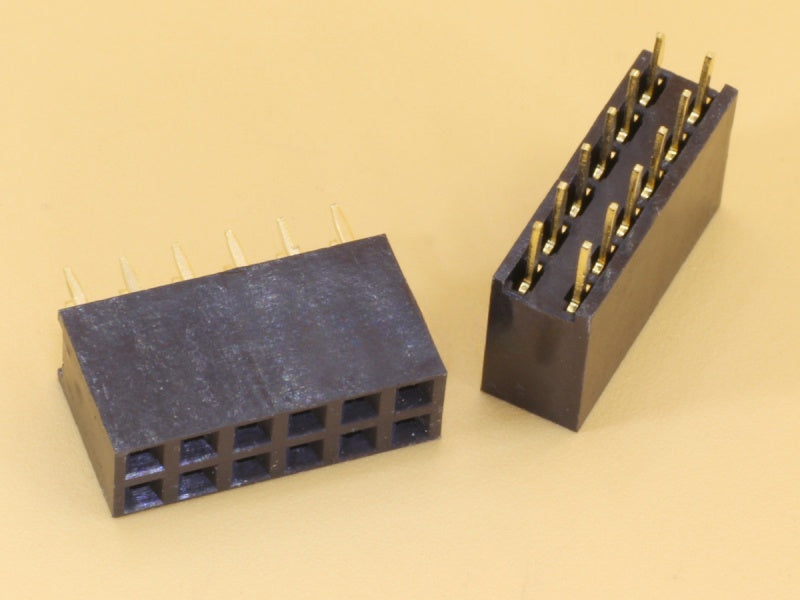

Double-Row Header Strips

Double-row headers provide two parallel rows of contacts.

They can provide more connections within a relatively small area.

Right-Angle Header Strips

Right-angle headers have pins bent at approximately 90 degrees.

They can be useful when the mating connection needs to be positioned horizontally relative to the PCB.

Breakaway Header Strips

Breakaway headers are supplied in longer sections that can often be separated into smaller pin counts.

This can be convenient for prototyping and custom PCB assembly.

Header Strip Pitch

Pitch is the distance between the centres of adjacent pins.

Common header-strip pitches include:

• 1.27 mm
• 2.00 mm
• 2.54 mm

The correct pitch is essential for compatibility.

For example, a 2.54 mm header cannot simply replace a 2.00 mm header because the PCB footprint and mating connector geometry are different.

Header Strip Selection Guide

How to Choose the Right Header Strip?

1. Determine the Required Pin Count

Count the number of electrical connections required.

Header strips may be available in different lengths and pin configurations.

2. Check the Pitch

Measure the distance between adjacent pins or check the PCB design specifications.

3. Choose the Row Configuration

Determine whether you need:

• Single row
• Double row
• Multiple rows

4. Select the Orientation

Choose between:

• Straight
• Right-angle

based on the physical layout of the PCB and connected component.

5. Check Male or Female

The header must be compatible with the mating connector.

6. Check Pin Length

Pin length can affect:

• Mating depth
• Soldering
• PCB clearance
• Connection reliability

7. Check the PCB Footprint

For PCB replacement, make sure the header matches the original footprint and hole spacing.

Header Strips for PCB Prototyping

Header strips are extremely useful for prototyping because they allow components and modules to be connected without permanently soldering every connection.

They can be used with:

• Development boards
• Sensor modules
• Microcontrollers
• Displays
• Relay modules
• Communication modules
• Custom PCBs

A typical prototype might use:

Microcontroller → Header Strip → Sensor Module

Header Strips for Arduino & Development Boards

Many development boards use standard header configurations to expose input/output pins.

Header strips can be used to connect:

• Sensors
• Displays
• Motor drivers
• Communication modules
• Expansion boards
• Jumper wires

Explore Sensors for components that can be connected to development and control boards.

Header Strips for Robotics

Robotics projects often contain multiple modules that need compact electrical connections.

Header strips can be useful for connecting:

• Sensors
• Controllers
• Motor drivers
• Communication modules
• Displays
• Power/control boards

Explore Motor for related motor components.

Header Strips for Board-to-Board Connections

Header strips can also be used to connect two PCBs through compatible mating connectors.

A simple arrangement can be:

PCB 1 → Male Header → Female Header → PCB 2

For more specialized PCB interconnection solutions, explore Board-to-Board connectors.

Header Strips vs JST Connectors

Both can be used for electronic connections, but they serve different purposes.

Explore JST Connectors for compact connector solutions.

Header Strips vs FFC/FPC

Explore FFC/FPC and FFC Cables for flexible interconnect products.

Common Header Strip Problems

Always compare the replacement header with the original component before soldering.

Header Strip Installation Tips

For reliable PCB installation:

1. Confirm the required pin count.
2. Check the pitch.
3. Verify the PCB footprint.
4. Position the header correctly.
5. Keep the header perpendicular to the PCB where required.
6. Solder the pins securely.
7. Inspect solder joints.
8. Check for solder bridges.
9. Verify continuity where necessary.
10. Test the connected circuit.

Why Choose Header Strips from Partsbaba.com?

• Essential PCB interconnection components
• Suitable for prototyping and electronics projects
• Different pin and pitch options
• Male and female configurations
• Straight and right-angle options
• Useful for PCB repair and replacement
• Suitable for development boards and modules
• Related connectors and electronic components available
• Convenient online sourcing from Partsbaba.com

Explore Related Collections at Partsbaba.com

Find more connectors and electronic components:

• Board-to-Board – Explore PCB-to-PCB connectors.
• JST Connectors – Browse compact electronic connectors.
• USB Connectors – Explore USB connection components.
• Modular Connectors – Find networking and communication connectors.
• Wire Terminal Connectors – Browse wire and terminal connection products.
• Drone Connectors – Explore connectors for drone electronics.
• FFC/FPC – Find flexible PCB connection products.
• Sensors – Explore electronic sensors.
• ICs – Browse integrated circuits.
• Resistors – Explore resistor components.
• Repairing Tools – Find tools for PCB assembly and repair.

Frequently Asked Questions

What is a header strip used for?

Header strips are used to create electrical connections between PCBs, wires, modules, development boards, and other electronic components.

What is the difference between male and female headers?

Male headers have exposed pins, while female headers have sockets designed to receive compatible male pins.

What is header-strip pitch?

Pitch is the distance between the centres of adjacent pins. It must match the PCB footprint and mating connector.

Can header strips be cut into smaller sections?

Many breakaway header strips are designed to be separated into smaller sections, but this depends on the specific product.

Are header strips suitable for PCB prototyping?

Yes. Header strips are widely used in prototyping, development boards, DIY electronics, robotics, and module connections.

How do I choose the correct header strip?

Check the pin count, pitch, number of rows, orientation, male/female configuration, mounting type, pin length, and PCB footprint.

Shop Header Strips at Partsbaba.com

Find Header Strips at Partsbaba.com for PCB assembly, prototyping, development boards, robotics, embedded systems, DIY electronics, repairs, and custom circuit projects.

Explore Header Strips at Partsbaba.com and find the right PCB connection components for your next electronics project.
