FFC/FPC

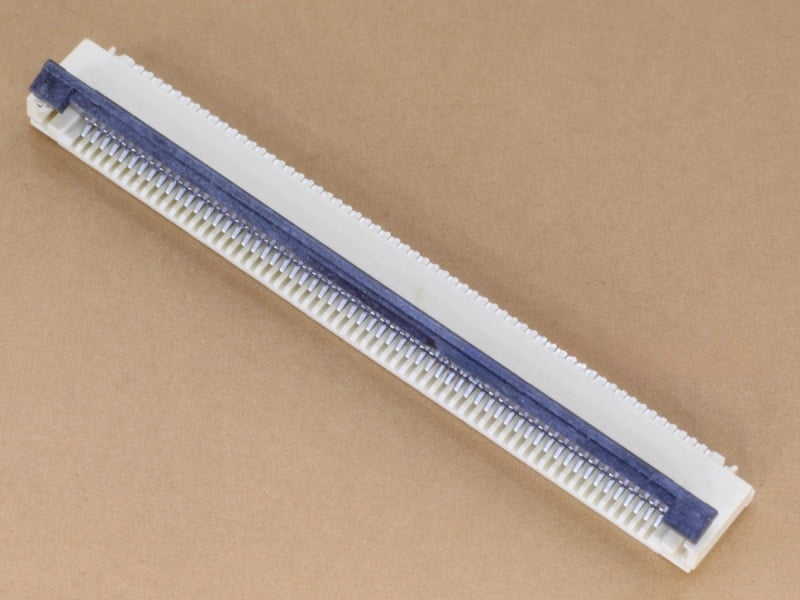

The 60 Pin 0.5mm Flip Lock FFC/FPC Connector is a precision-engineered component designed for reliable electrical connections in compact electronic devices. Featuring a 0.5mm pitch and 60 pins, this flip lock connector ensures secure attachment of flexible flat cables (FFC) or flexible printed circuits (FPC). Its flip lock mechanism facilitates easy insertion and strong retention, making it ideal for applications in mobile devices, cameras, and other high-density electronics requiring dependable signal transmission.

• 60-pin configuration supports complex multi-signal connections in compact assemblies
• 0.5mm pitch allows for high-density cable connections without sacrificing reliability
• Flip lock design provides a secure and vibration-resistant locking mechanism for stable contacts
• Compatible with both flexible flat cables (FFC) and flexible printed circuits (FPC) for versatile use
• Designed for compact electronic devices, optimizing space without compromising performance
• Easy to install and remove, reducing assembly time and maintenance effort
• Constructed with durable materials to ensure long-term electrical and mechanical stability

The 40 Pin 0.5mm Pitch FFC/FPC Extension Connector is designed to seamlessly join two flexible flat cables, enabling extended reach or easy repairs in electronic assemblies. This compact connector features a precise 0.5mm pitch spacing and supports up to 40 pins, ensuring reliable signal integrity. Ideal for use in compact devices, it offers compatibility with standard FFC and FPC cables, making it a versatile component for electronics manufacturing and prototyping.

• 40-pin configuration supports complex multi-signal connections with accuracy.
• 0.5mm pitch spacing ensures tight, space-efficient cable extension solutions.
• Designed to link two FFC or FPC cables, allowing quick extension or repair of circuits.
• Compact size fits easily into tight electronic assemblies without added bulk.
• Reliable electrical contacts maintain consistent performance in demanding environments.
• Compatible with a wide range of flat flexible cables used in consumer and industrial electronics.
• Facilitates streamlined manufacturing and maintenance by simplifying cable management.

Offers durable FPC/FPC Connector / Ribbon Cable Connector / Flat Cable Connector / ZIF (Zero Insertion Force) Connectors for efficient connections, suitable for use in various electronic devices, though specific compatible models are not detailed. Flip Connector are designed for easy installation and secure connections.

Offers durable FPC/FPC Connector / Ribbon Cable Connector / Flat Cable Connector / ZIF (Zero Insertion Force) Connectors for efficient connections, suitable for use in various electronic devices, though specific compatible models are not detailed. FFC Connectors are designed to connect flexible printed circuits (FPCs) and flat flexible cables (FFCs) to printed circuit boards (PCB s), providing reliable interconnect solutions.

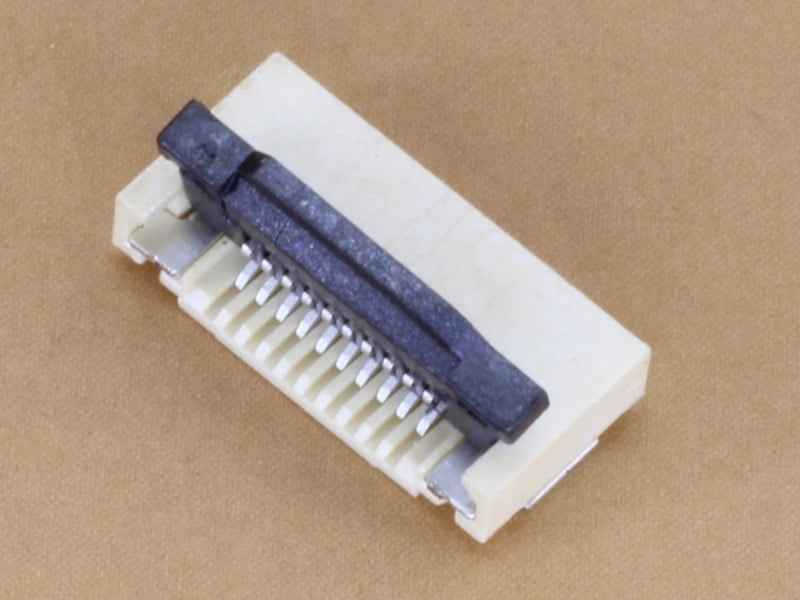

The 10 Pin 0.5mm Flip Lock FFC/FPC Connector is designed to provide reliable and secure connections for flexible flat cables and printed circuit boards. Its compact 10-pin layout with a 0.5mm pitch is ideal for precision electronics requiring tight spacing and dependable signal transmission. This connector's flip lock mechanism ensures a firm grip on cables, making it suitable for use in various electronic components and devices where durability and stability are critical.

• 10-pin configuration accommodates compact and intricate wiring needs.
• 0.5mm pitch offers high-density connection suitable for space-constrained applications.
• Flip lock design secures cables firmly, preventing accidental disconnections.
• Compatible with both flexible flat cables (FFC) and flexible printed circuits (FPC).
• Compact size supports integration in slim and lightweight electronic assemblies.
• Constructed to maintain signal integrity under vibration and movement.
• Ideal for use in consumer electronics, automotive devices, and industrial equipment.

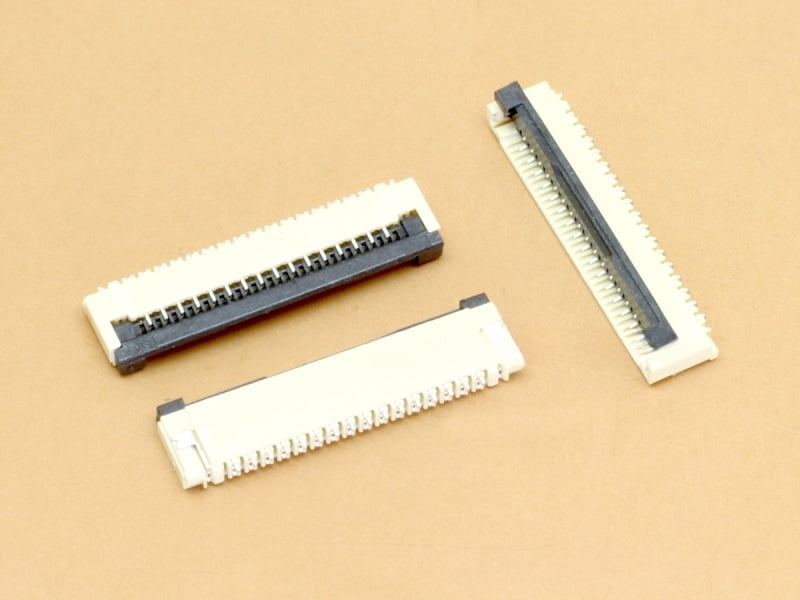

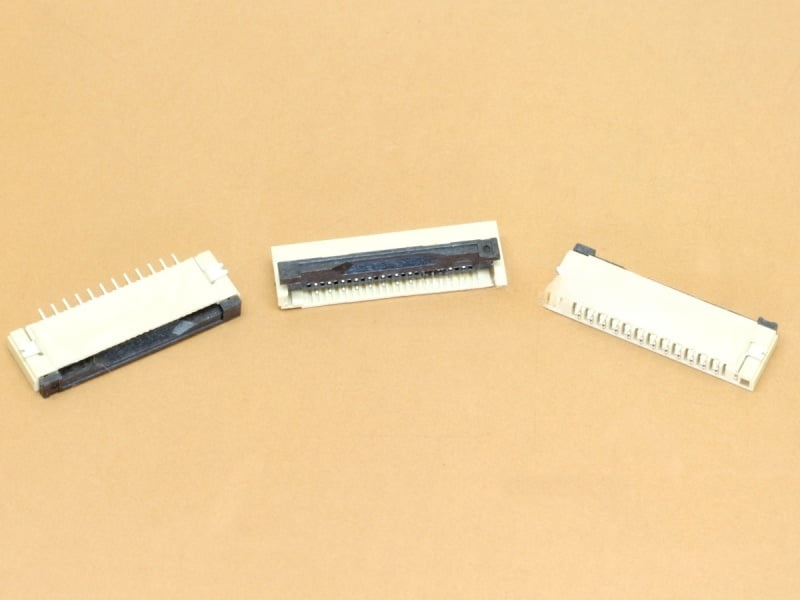

The 12 Pin 1mm Flip Lock FFC/FPC Bottom Contact Connector is designed to provide reliable connections for flat flexible cables and printed circuit cables. This component features a secure flip-lock mechanism that ensures stable engagement and easy insertion, suitable for compact electronic assemblies. Its bottom contact design optimizes board space and compatibility with various applications requiring precise, durable cable connections in electronics manufacturing.

• 12 pin configuration supports multi-channel signal transmission for versatile connectivity needs
• 1mm pitch spacing enhances compactness while maintaining reliable contact
• Flip lock design offers secure cable retention with straightforward locking and unlocking
• Bottom contact style enables efficient use of PCB space with a low profile footprint
• Compatible with both FFC and FPC cables, increasing application flexibility
• Constructed for durability to maintain connection integrity in demanding environments
• Ideal for integration into consumer electronics, industrial devices, and communication systems

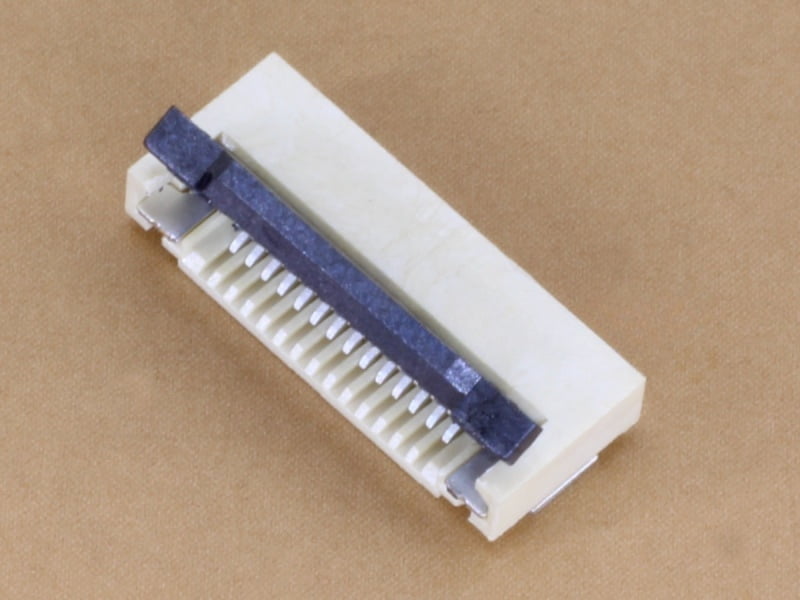

The 14 Pin 0.5mm Flip Lock FFC/FPC Connector is a compact, reliable electrical component designed to establish secure connections between flexible flat cables and printed circuit boards. Its 0.5mm pitch and flip lock mechanism ensure precise alignment and firm retention, ideal for compact electronic devices requiring stable signal transmission. Compatible with a wide range of FFC and FPC cables, this connector suits applications in consumer electronics, automotive systems, and industrial equipment where space-saving and dependable connections are critical.

• 14-pin configuration accommodates multi-signal connections in a compact layout
• 0.5mm pitch spacing enables high-density cable connections for space-constrained designs
• Flip lock mechanism provides secure cable retention with easy insertion and removal
• Compatible with various FFC and FPC types to support versatile application needs
• Durable construction ensures long-lasting electrical contact and mechanical stability
• Low-profile design fits neatly into tight assembly environments without compromising performance
• Precision alignment features reduce connection errors and enhance signal integrity

The 26 Pin 0.5mm Flip Lock FFC/FPC Connector is a precision-engineered component designed for reliable and compact electrical connections. It features a 0.5mm pitch and 26 pins, suited for fine-pitch flexible flat cables and printed circuit boards. This connector's flip lock mechanism ensures secure engagement, making it ideal for compact electronic devices requiring stable and efficient connectivity. Compatible with various flexible cable applications, it supports delicate electronics where space and connection integrity are critical.

• 26-pin configuration offers ample connections within a compact footprint, suitable for dense electronic layouts.
• The 0.5mm pitch enables precise and fine-pitch cable connections, optimizing space efficiency in device design.
• Flip lock mechanism secures the flexible cable firmly, preventing accidental disconnection during operation or handling.
• Engineered for use with flexible flat cables (FFC) and flexible printed circuits (FPC), ensuring versatile compatibility.
• Compact and low-profile design supports integration in slim electronic assemblies and portable devices.
• Durable construction maintains consistent electrical performance in demanding environments and frequent use cases.

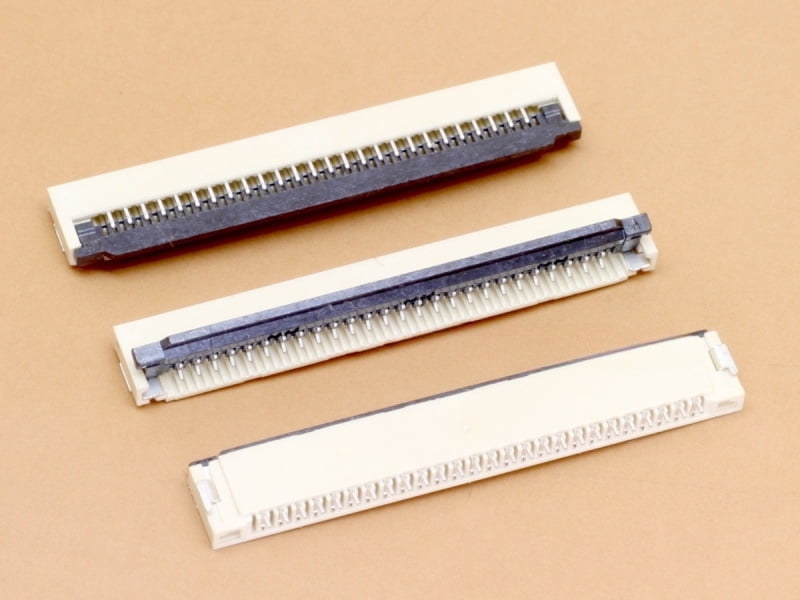

The 26 Pin 1mm Flip Lock FFC/FPC Bottom Contact Connector is designed to provide reliable and compact connections for flexible flat cables and printed circuit cables. With its 1mm pitch and flip lock mechanism, this connector ensures secure mating and easy installation. Ideal for compact electronic assemblies, it is compatible with bottom contact FFC/FPC cables, making it suitable for applications requiring stable and precise electrical connections in tight spaces.

• The 26-pin configuration supports multiple signal lines for versatile connectivity needs.
• Features a 1mm pitch to accommodate fine-pitch cable designs without sacrificing durability.
• The flip lock mechanism guarantees a secure and stable connection that resists vibration and disconnection.
• Designed for bottom contact FFC/FPC cables, ensuring compatibility with a wide range of flexible cable types.
• Compact form factor ideal for space-constrained electronic devices and assemblies.
• Offers easy installation and removal to streamline assembly and maintenance processes.

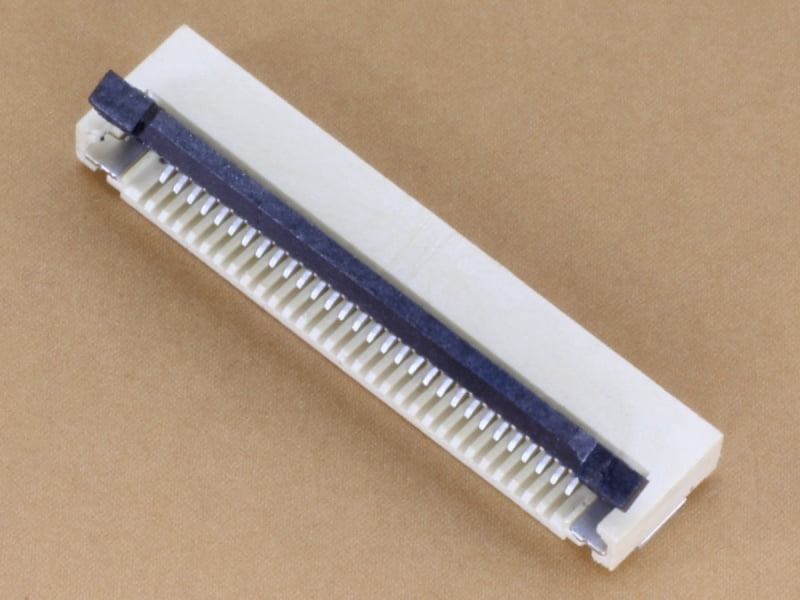

The 30 Pin 0.5mm Flip Lock FFC/FPC Connector is designed for secure and reliable connections in electronic assemblies. This component facilitates easy integration of flexible flat cables (FFC) or flexible printed circuits (FPC) with a fine pitch of 0.5mm, supporting compact and high-density circuit designs. Its flip lock mechanism ensures a firm connection without the risk of accidental disconnection, making it ideal for use in consumer electronics, industrial devices, and other applications requiring precise cable connection solutions.

• 30-pin configuration enables multiple signal connections within a compact footprint
• 0.5mm pitch supports high-density circuit layouts for space-saving designs
• Flip lock mechanism provides a secure hold to maintain stable connections under vibration
• Compatible with both FFC and FPC cables, offering versatile application options
• Low-profile design suits slim electronic devices and tight assembly spaces
• Engineered for durability and repeated cable insertions without loss of contact quality

The 34 Pin 0.5mm Flip Lock FFC/FPC Connector is designed for secure and reliable connections in electronic applications requiring flat flexible or printed circuit cables. This connector features a fine 0.5mm pitch with 34 pins and a flip lock mechanism that provides a strong hold while enabling easy cable insertion and removal. Ideal for compact electronic devices, it ensures consistent signal transmission and compatibility with a wide range of FFC/FPC cables.

• The 0.5mm pitch supports high-density wiring in space-constrained environments.
• A flip lock design offers secure cable retention and effortless operation.
• Equipped with 34 pins to accommodate multi-signal connections efficiently.
• Constructed for compatibility with various flat flexible and printed circuit cables.
• Reliable performance in compact electronic assemblies where space and durability matter.
• Enables stable, interference-resistant electrical connections for consistent device function.

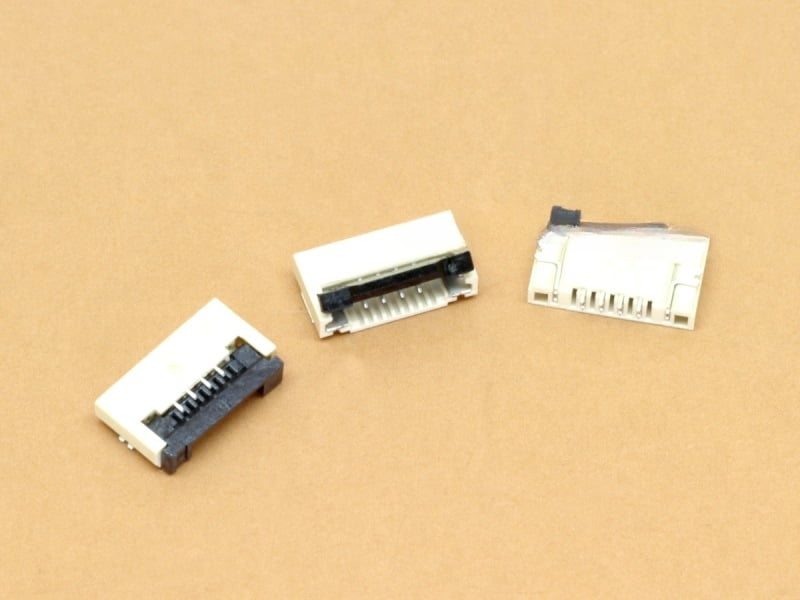

The 4 Pin 1mm Flip Lock FFC/FPC Bottom Contact Connector is designed for reliable, compact connections in electronic assemblies. It serves as a secure interface for flexible flat cables or printed circuit boards, ensuring stable electrical contact in tight spaces. Featuring a 1mm pitch and a flip-lock mechanism, this connector supports easy installation and removal while maintaining a strong hold, making it ideal for various consumer electronics and industrial applications.

• Flip-lock design offers quick, tool-free cable engagement and secure retention for consistent performance.
• 1mm pitch spacing fits compact layouts, enabling dense circuit configurations without sacrificing reliability.
• Bottom contact type provides excellent electrical connection with flexible flat cables or FPCs for versatile integration.
• 4-pin configuration accommodates small signal and data lines, suitable for low-current applications.
• Robust construction ensures durability and long service life in demanding environments.
• Compatible with a wide range of flexible cables, enhancing adaptability in various electronic systems.

The 54 Pin 0.5mm Flip Lock FFC/FPC Connector is engineered for reliable electrical connections in compact electronic assemblies. Designed with a 0.5mm pitch and 54 pins, this flip lock connector ensures secure fastening and precise alignment for flexible printed circuits and flat flexible cables. Its robust flip lock mechanism supports high-density applications, making it ideal for use in consumer electronics, automotive components, and industrial devices where space efficiency and dependable connections are critical.

• 54-pin configuration offers extensive connectivity for complex circuit designs.
• 0.5mm pitch enables high-density connections in limited space environments.
• Flip lock design guarantees a firm hold, reducing the risk of accidental disconnection.
• Compatible with a wide range of FFC and FPC cables, enhancing versatility in various applications.
• Compact size supports integration in miniature electronic devices without compromising performance.
• Durable construction ensures consistent electrical contact and long service life.
• Ideal for use in consumer electronics, automotive systems, and industrial machinery.

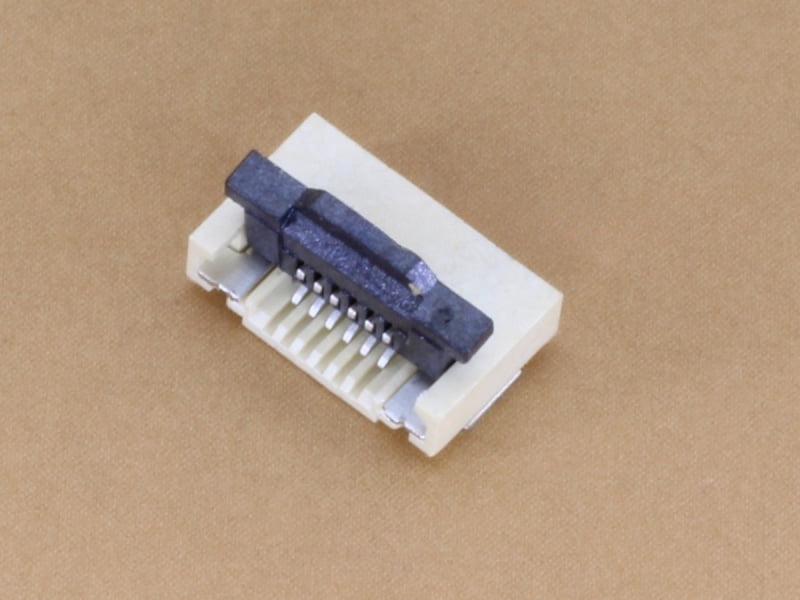

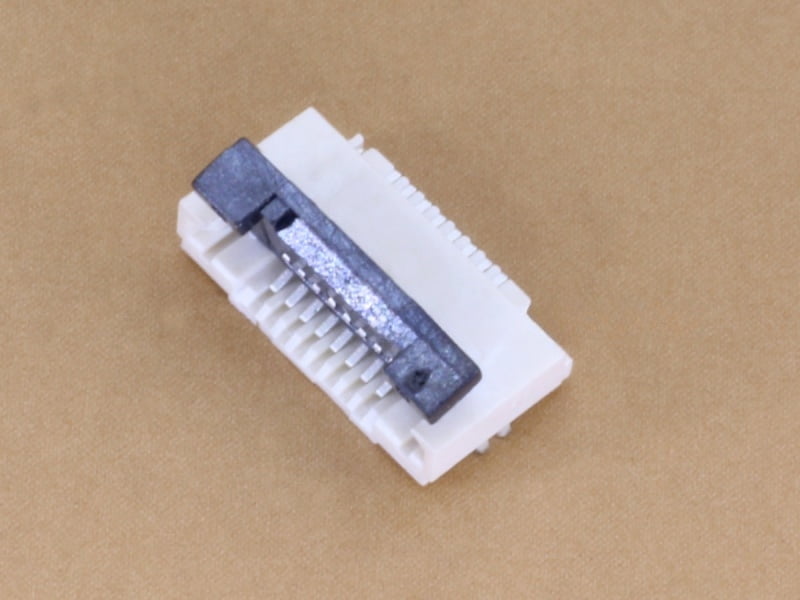

The 6 Pin 0.5mm Flip Lock FFC/FPC Connector is a compact electronic component designed for reliable connection of flexible flat cables or printed circuit cables in tight spaces. Featuring a flip-lock mechanism, it ensures secure and stable cable retention while allowing easy insertion and removal. This connector supports six pins with a 0.5mm pitch, making it ideal for precision electronics, consumer devices, and compact circuitry where dependable connections are essential.

• Flip-lock design provides quick and secure cable engagement for enhanced durability
• Six-pin layout with a 0.5mm pitch delivers precise and compact connectivity
• Compatible with flexible flat cables (FFC) and flexible printed circuits (FPC) to suit diverse applications
• Low-profile construction enables use in space-constrained electronic assemblies
• Durable materials ensure consistent electrical performance under repeated insertions
• Ideal for small-scale electronic devices requiring reliable cable interfacing

The 8 Pin 0.5mm Flip Lock FFC/FPC Connector is designed for secure and reliable connections in electronic assemblies. This component supports flexible flat cable (FFC) and flexible printed circuit (FPC) interfaces, ensuring stable electrical contact with a compact footprint. Its flip lock mechanism provides easy cable insertion and strong retention, making it suitable for a variety of compact electronic devices where space and reliability are critical.

• 0.5mm pitch allows for high-density connections in tight spaces
• 8-pin configuration supports multiple signal lines for versatile applications
• Flip lock design ensures secure cable retention and facilitates quick assembly
• Compatible with both FFC and FPC cables for flexible integration
• Compact size ideal for space-constrained electronics including wearables and small gadgets
• Durable contacts provide consistent electrical performance over multiple mating cycles

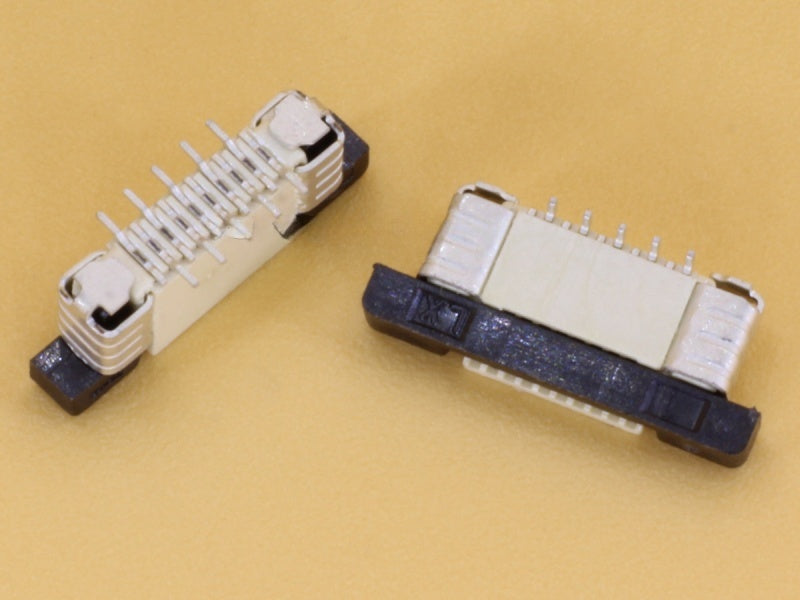

The 12 Pin 0.5mm Pitch FFC/FPC Top Entry Vertical Connector is designed for precision and efficiency in compact electronic assemblies. This connector is ideal for low voltage, high-density applications where space and reliability are critical. Its 0.5mm pitch ensures compatibility with fine-pitch flexible flat cables and printed circuit boards, making it suitable for various consumer electronics and compact devices requiring secure, vertical cable connections.

• 12-pin configuration supports multiple signal lines within a minimal footprint
• 0.5mm pitch spacing enables high-density wiring for tight installation spaces
• Top entry design allows easy vertical insertion of FFC/FPC cables, improving assembly efficiency
• Built for low voltage environments, ensuring safe and reliable connections in delicate electronics
• Compatible with a broad range of flexible flat cables and printed circuit boards
• Designed to maintain secure mechanical and electrical contact in compact device layouts
• Ideal for applications in consumer electronics, communication devices, and other space-constrained systems

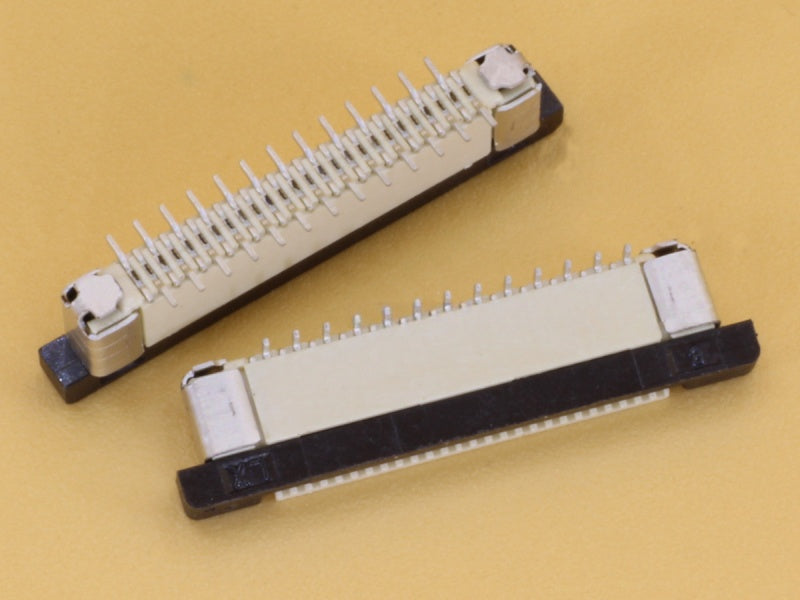

This 26 Pin 0.5mm Pitch FFC/FPC Top Entry Vertical Connector is designed for compact electronic devices requiring reliable signal transmission in tight spaces. Ideal for low voltage, high-density applications, it supports flexible flat cables with a 0.5mm pitch, ensuring secure and precise connections. Its top entry design facilitates easy cable insertion and maintenance, making it suitable for a range of consumer electronics and industrial equipment.

• 26-pin configuration provides ample connection points for complex circuitry in compact layouts
• 0.5mm pitch accommodates high-density FFC/FPC cables with precision and stability
• Top entry orientation allows straightforward cable insertion, improving assembly efficiency
• Vertical mounting supports space-saving designs and simplifies circuit board integration
• Engineered for low voltage applications, ensuring safe and reliable performance
• Compatible with a wide range of flexible flat cables used in consumer electronics and industrial devices

The 28 Pin 0.5mm Pitch FFC/FPC Top Entry Vertical Connector is designed for connecting flexible flat cables in compact electronic devices. It supports 28 pins with a fine 0.5mm pitch, ideal for high-density circuits operating at low voltage. The vertical top-entry design allows for straightforward cable insertion, making it suitable for applications like portable devices, displays, and other tight-space assemblies requiring reliable connections.

• 28-pin configuration ensures ample connection points for complex circuit needs
• 0.5mm pitch accommodates fine-pitch cables in dense electronic layouts
• Top entry vertical orientation simplifies cable installation and maintenance
• Engineered for low voltage environments, enhancing safety and efficiency
• Compatible with flexible flat cables (FFC) and flexible printed circuits (FPC)
• Compact design fits easily into space-constrained assemblies
• Durable construction supports long-lasting electrical performance

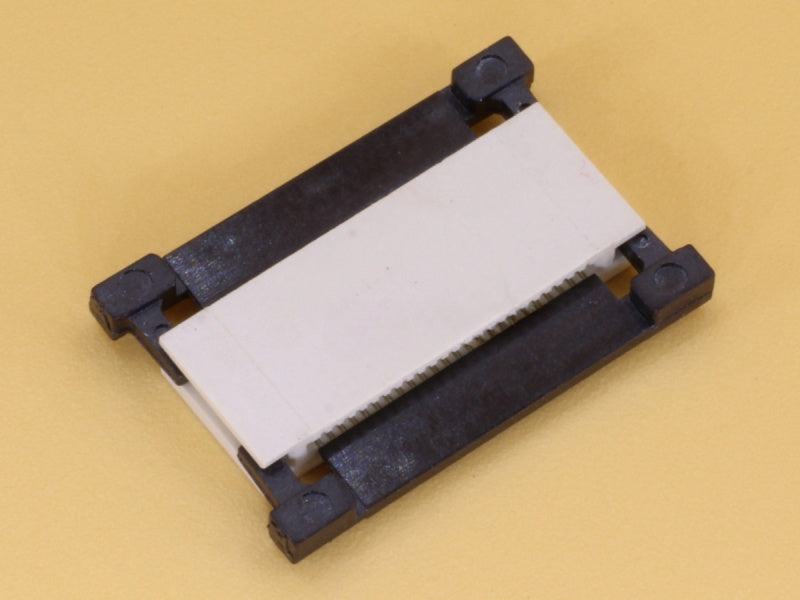

The 24 Pin 0.5mm Pitch FFC/FPC Extension Connector is designed to link two flat flexible cables, providing a reliable extension or repair solution. This component ensures precise alignment with its 0.5mm pitch and supports 24 pins for efficient signal transmission. Ideal for use in electronics requiring flexible cable connections, it offers a compact and durable interface to maintain electrical continuity and device performance.

• 24-pin configuration allows seamless connection between two FFC cables without signal loss
• Compact 0.5mm pitch design ensures compatibility with a variety of flexible printed circuits
• Durable build supports consistent electrical contact in demanding electronic assemblies
• Enables easy extension or repair of flexible flat cables in compact spaces
• Ideal for applications in consumer electronics, automotive, and industrial devices
• Provides a reliable interface to maintain data integrity and device functionality

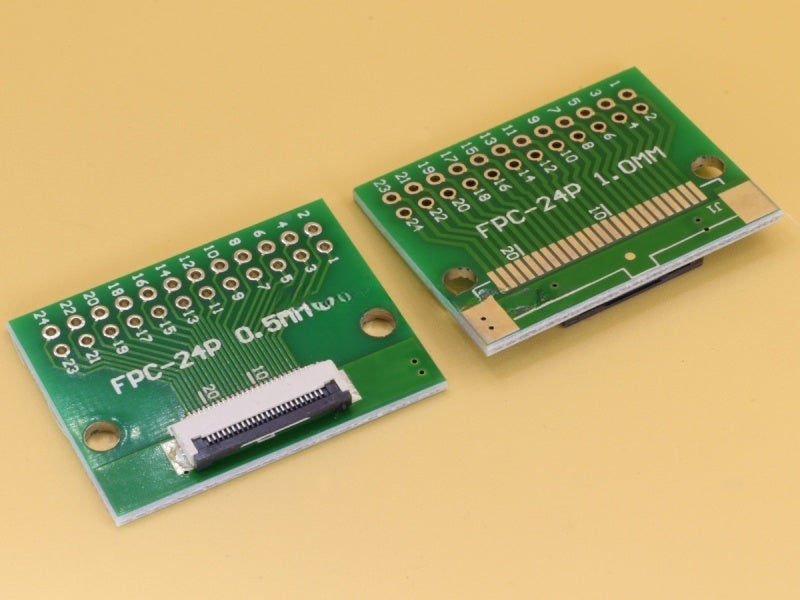

This 24 Pin PCB comes pre-equipped with a 0.5mm pitch FFC connector soldered in place, designed to simplify connections in compact electronic assemblies. It features a complementary 1mm FPC connector layout on the opposite side, allowing versatile interfacing options. Ideal for projects requiring reliable, space-saving connections, this component suits a variety of electronic and prototyping applications.

• 24-pin configuration supports complex signal routing in tight spaces
• 0.5mm pitch FFC connector is pre-soldered for immediate integration
• The opposite side includes an empty 1mm FPC connector layout for additional compatibility
• Designed for ease of assembly and reliable electrical contact
• Perfect for compact electronics and prototyping projects requiring flexibility

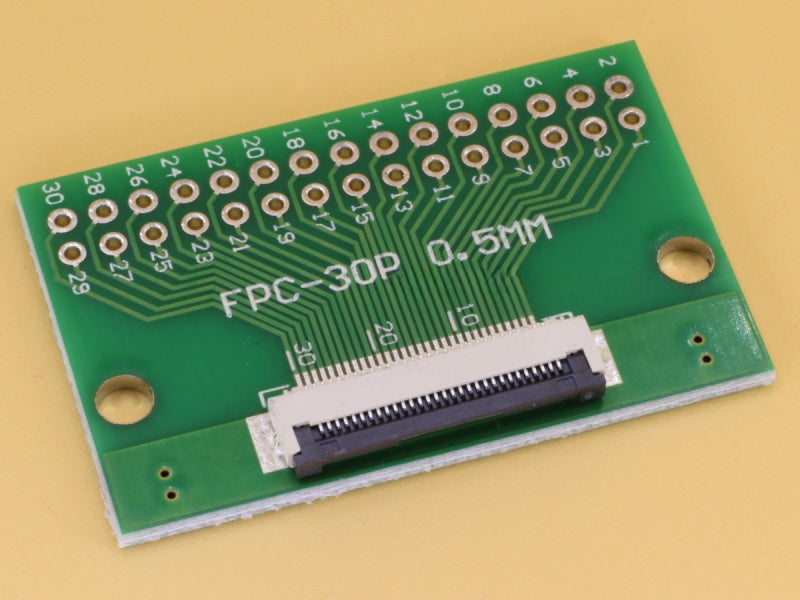

This 30 Pin PCB features a pre-soldered 0.5mm FFC connector, designed to facilitate secure and efficient connections in electronic assemblies. Its layout includes an empty 1mm FPC connector space on the opposite side, enabling versatile integration options for various components. Ideal for use in compact electronic projects, this component supports precise interfacing with flat flexible cables (FFC), making it suitable for applications requiring reliable signal transmission within tight spaces.

• 30 pin configuration offers extensive connectivity for multi-signal applications.
• 0.5mm pitch FFC connector ensures a snug and reliable cable connection.
• Empty 1mm FPC connector layout on the reverse side allows for future customization or expansion.
• Compact PCB design tailored for integration in space-constrained electronic devices.
• Compatible with a broad range of flat flexible cables, enhancing versatility in circuit design.
• Ideal for use in prototypes and production-level components requiring consistent connection quality.

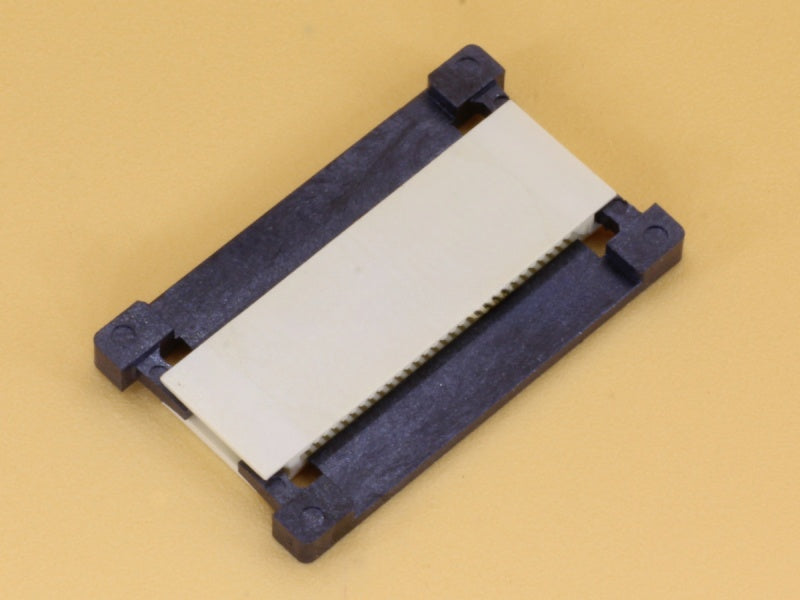

The 30 Pin 0.5mm Pitch FFC/FPC Extension Connector is designed to seamlessly link two flexible flat cables, enabling signal extension or repair in electronic assemblies. Its 30-pin configuration with a precise 0.5mm pitch ensures reliable electrical contact, making it ideal for compact devices requiring flexible interconnections. Compatible with standard FFC and FPC cables, this connector supports various applications in consumer electronics, industrial equipment, and prototyping projects where space-saving and dependable connections are essential.

• 30-pin layout accommodates multiple signal lines for complex circuit connections
• 0.5mm pitch provides tight spacing suitable for compact electronic designs
• Allows easy extension or repair of flexible flat cables without soldering
• Compatible with both FFC and FPC cables ensuring versatile use
• Compact form factor supports space-constrained applications
• Durable contacts ensure consistent electrical performance over repeated connections

The 50 Pin 0.5mm Pitch FFC/FPC Top Entry Vertical Connector is designed for precise interconnection in compact electronic assemblies. It supports 50-pin flexible flat cables with a fine 0.5mm pitch, ensuring reliable signal transmission in tight spaces. Ideal for low voltage, high-density applications, this connector offers vertical top entry access for easy installation and maintenance. Compatible with various flexible printed circuit designs, it is well-suited for consumer electronics, communication devices, and other compact systems requiring efficient cable management.

• 50-pin configuration accommodates complex wiring needs while maintaining a small footprint
• 0.5mm pitch delivers high-density connection suited for space-constrained electronics
• Top entry vertical design simplifies cable insertion and removal in vertical mounting setups
• Engineered for low voltage applications ensuring safe and efficient signal transfer
• Compatible with both FFC and FPC cables for versatile flexible circuit integration
• Constructed to provide secure mechanical retention for stable connections under vibration
• Compact form factor supports use in portable devices and communication equipment

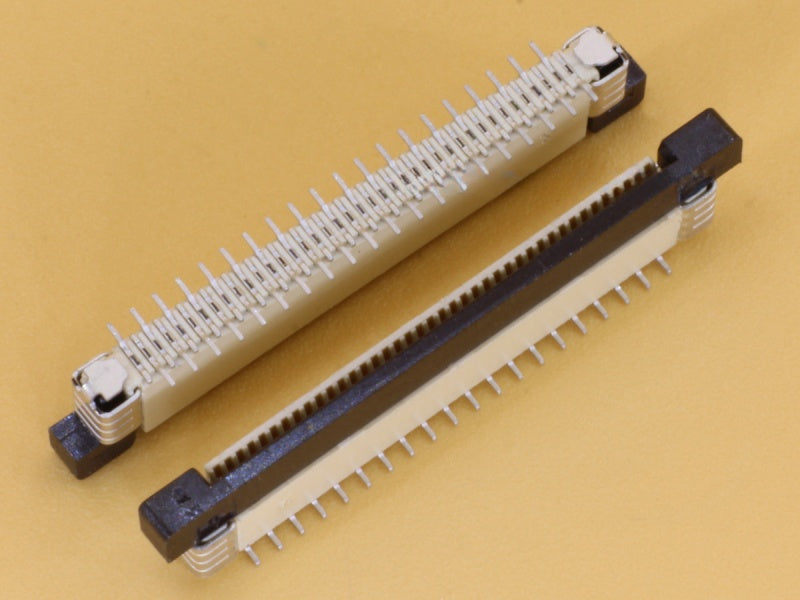

The 40 Pin 0.5mm Pitch FFC/FPC Top Entry Vertical Connector is designed for compact electronic assemblies requiring precise, reliable connections. This connector is ideal for low-voltage, high-density circuits, offering a 0.5mm pitch to support fine-pitch ribbon cables in tight spaces. Its top entry vertical design facilitates straightforward cable insertion and secure attachment, making it suitable for applications like consumer electronics, industrial devices, and communication equipment.

• 40-pin configuration accommodates a broad range of signal connections in a compact footprint.
• 0.5mm pitch ensures high-density compatibility with fine-pitch flexible flat cables (FFC) and flexible printed circuits (FPC).
• Top entry vertical orientation allows for easy cable insertion and efficient space utilization on circuit boards.
• Engineered to support low-voltage applications with reliable electrical performance and minimal signal interference.
• Durable contact materials provide consistent conductivity and longevity in demanding environments.
• Compatible with a variety of flexible cables, enhancing versatility across multiple device types.
• Compact design fits into tight areas without compromising connection integrity.
• Ideal for precision electronics where space and signal integrity are critical factors.

The 4-Pin 0.5mm Pitch FPC/FFC SMT Upper Contact Drawer Connector is designed for precise and reliable connections in compact electronic setups. This connector supports flexible printed circuit (FPC) and flat flexible cable (FFC) applications, offering robust surface-mount technology (SMT) integration. Its 0.5mm pin pitch ensures compatibility with delicate circuit designs, making it ideal for devices requiring efficient signal transmission in tight spaces.

• 0.5mm pitch spacing tailored for high-density circuit board layouts
• 4-pin configuration enabling multiple signal or power lines within a compact footprint
• Surface-mount technology (SMT) design for streamlined assembly and secure connections
• Upper contact drawer mechanism facilitating easy insertion and removal of cables without damage
• Compatible with a wide range of flexible ribbon cables and flat cables for versatile electronics use
• Durable construction ensures long-lasting performance in various electronic devices
• Zero Insertion Force (ZIF) style reduces wear on cables and contacts during repeated use

Offers durable FPC/FPC Connector / Ribbon Cable Connector / Flat Cable Connector / ZIF (Zero Insertion Force) Connectors for efficient connections, suitable for use in various electronic devices, though specific compatible models are not detailed. These Connector are available in various pitch sizes and styles, including side-entry and dual contact options.

The 10 Pin 1mm Flip Lock FFC/FPC Bottom Contact Connector is a compact electronic component designed to provide reliable connections in flexible flat cable (FFC) or flexible printed circuit (FPC) applications. Its flip lock mechanism ensures secure cable retention, while the 1mm pitch spacing accommodates precise wiring setups. This connector is ideal for compact devices requiring dependable bottom contact interfaces, such as portable electronics, instrumentation, and embedded systems.

• Flip lock design guarantees firm cable engagement for stable signal transmission
• 1mm pitch spacing supports fine-pitch FFC and FPC cables for high-density connections
• 10-pin configuration enables multiple signal paths within a small footprint
• Bottom contact type ensures consistent electrical contact and easy cable insertion
• Compatible with a variety of flexible flat cables and flexible printed circuits
• Compact form factor suits constrained spaces in modern electronic assemblies
• Durable construction designed to withstand repeated connection cycles

Secure Connections with a 10 Pin FFC Flip Connector

Loose ribbon cables cause intermittent device failure and data loss. Traditional connectors are often hard to lock or damage the cable during insertion. This 10 Pin FFC Flip Connector uses a ZIF mechanism to hold wires firmly. It ensures a stable data path because it applies even pressure across all pins. You can now repair smartphones or laptops with total confidence.

Advantages of the FFC SMT Flip Connector

The FFC SMT Flip Connector is designed for high-density electronic layouts. It provides a low-profile interface while also saving valuable board space. Since it features a flip-lock design, the installation is quick and secure. This 10 Pin FFC Flip Connector is ideal for modern gadgets that require reliable internal wiring. It minimizes the risk of the cable slipping out during movement.

Industrial Grade Build Quality

This component features high-temperature plastic for safe reflow soldering. The bottom contacts provide a reliable electrical path for sensitive signals. It remains durable while also allowing for multiple cable insertions without wear. This 10 Pin FFC Flip Connector is perfect for compact electronic repairs and DIY projects. It offers a professional-grade solution for any surface-mount application.

Features & Benefits

• Flip-Lock Actuator – Provides a secure mechanical lock for the ribbon cable.

• 0.5mm Pitch – Matches the standard high-density spacing for modern FPC cables.

• SMT Mounting – Designed for easy surface-mount soldering on any PCB.

• ZIF Technology – Allows for zero-force insertion to prevent cable damage.

Technical Specifications

Compatibility Table

Installing Your FFC SMT Flip Connector

Always open the latch fully before inserting the cable into the 10 Pin FFC Flip Connector. This ensures the FFC SMT Flip Connector grips the contacts perfectly every time.
