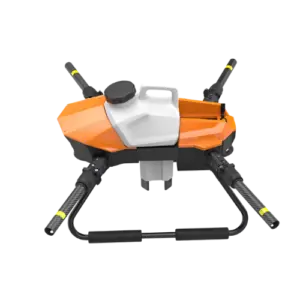

EFT G06 6L Agricultural Drone Frame

The EFT G06 is a compact agricultural drone frame designed for crop spraying and precision agriculture applications. Featuring a 6-liter chemical tank, foldable arm structure, and modular airframe design, the G06 provides a practical platform for building lightweight agricultural spraying drones.

Its integrated fuselage layout combines the flight controller compartment, chemical tank, and battery compartment into a structured design that simplifies installation and maintenance. The frame is compatible with 12S power systems, 24-inch propellers, and X6 Plus propulsion systems, making it suitable for small to medium-scale spraying operations.

Key Features

Integrated Airframe Design

The G06 utilizes an integrated body structure that reduces the number of separate components while improving overall rigidity. This design helps simplify assembly and supports efficient cable routing within the airframe.

Three-Section Fuselage Layout

The frame is divided into dedicated sections for:

• Flight controller and electronics
• Chemical tank
• Battery compartment

This arrangement helps maintain balanced weight distribution throughout spraying operations.

Quick-Release Tank and Battery System

The removable tank and plug-in battery design allow faster replacement during field operations, reducing turnaround time between flights.

Foldable Frame Structure

The folding arm mechanism enables compact storage and easier transportation between operating locations.

Modular Construction

Major components can be removed and replaced individually, simplifying maintenance and reducing downtime when repairs are required.

Radar Mount Provision

A dedicated mounting position is available for optional terrain-following radar systems, allowing integration of altitude maintenance and terrain adaptation solutions.

Technical Specifications

Applications

The EFT G06 frame can be configured for various agricultural UAV applications, including:

• Pesticide spraying
• Herbicide application
• Liquid fertilizer spraying
• Micronutrient application
• Paddy field operations
• Crop protection programs
• Agricultural drone development and assembly projects

Advantages

• Compact and portable foldable design
• Dedicated 6-liter tank integration
• Compatible with 12S agricultural drone power systems
• Quick-access battery and tank installation
• Modular structure for easier servicing
• Supports optional radar integration
• Suitable for professional agricultural UAV assembly

Package Includes

• 1 × EFT G06 Agricultural Drone Frame
• 1 × 6L Chemical Tank
• Folding Arm Assembly
• Landing Gear Assembly
• Mounting Hardware

Installation Notes

• Recommended for use with X6 Plus propulsion systems and 24-inch propellers.
• Verify center-of-gravity positioning after installation of batteries and spraying equipment.
• Ensure all arm locking mechanisms are secured before flight.
• Follow local drone regulations and safety guidelines during operation.
• Perform calibration of flight controller and spraying system before deployment.

Why Choose the EFT G06?

The EFT G06 offers a compact and practical platform for agricultural spraying drone development. Its integrated structure, foldable design, quick-release tank system, and compatibility with commonly used agricultural drone propulsion systems make it suitable for operators, drone integrators, and agricultural service providers seeking a configurable 6-liter spraying drone platform.
