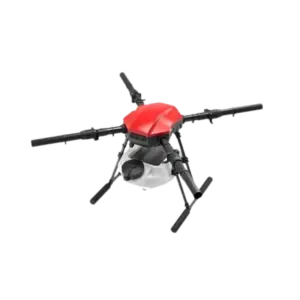

EFT E416P 16L Agricultural Drone Frame

The EFT E416P is a 16L agricultural drone frame designed for crop spraying, precision agriculture, and commercial UAV applications. Built on a 4-axis quadcopter platform, the frame combines a durable carbon fiber structure, foldable arms, and a large-capacity chemical tank to support efficient agricultural spraying operations.

Designed for compatibility with 12S and 14S LiPo battery systems, large agricultural motors, and professional spraying equipment, the E416P provides a configurable platform for drone manufacturers, agricultural service providers, and UAV system integrators.

Its modular construction allows easy installation of propulsion components, flight controllers, spraying systems, and other agricultural drone accessories, making it suitable for custom agricultural drone development.

Key Features

16-Liter Chemical Tank

The integrated 16L spray tank allows longer spraying operations between refills, making the frame suitable for medium- to large-scale agricultural applications.

4-Axis Quadcopter Design

The E416P features a 4-axis quadcopter layout, providing a straightforward airframe design that supports agricultural spraying while simplifying maintenance and assembly.

Carbon Fiber and Aluminum Construction

Constructed using carbon fiber and aluminum alloy, the frame offers a lightweight yet rigid structure suitable for repeated field operations.

Foldable Arm Design

The foldable arm mechanism reduces the transport size of the frame, allowing convenient storage and easier transportation between work sites.

High Payload Capacity

With an approximate 37 kg maximum takeoff weight, the frame is designed to accommodate the spray tank, battery, propulsion system, spraying equipment, and onboard electronics.

Compatible Mounting Platform

Pre-designed mounting locations support installation of compatible flight controllers, ESCs, motors, spraying systems, and other UAV components.

Spray System Compatibility

The frame supports installation of various agricultural spraying systems, including diaphragm pumps, centrifugal pumps, and multi-nozzle spray configurations.

Wide Landing Gear

The landing gear provides stable ground clearance for takeoff and landing while accommodating spraying components mounted beneath the frame.

Technical Specifications

Applications

The EFT E416P can be configured for a wide range of agricultural UAV applications, including:

• Pesticide spraying
• Herbicide application
• Liquid fertilizer spraying
• Micronutrient application
• Seed broadcasting (with compatible spreading system)
• Orchard spraying
• Plantation crop spraying
• Precision agriculture
• Agricultural drone development and integration
• Research and testing of UAV platforms

Advantages

• Large 16-liter chemical tank for extended spraying operations
• Foldable design for convenient transportation and storage
• Durable carbon fiber and aluminum construction
• High payload capacity for agricultural equipment
• Compatible with professional agricultural propulsion systems
• Supports multiple spraying system configurations
• Modular design for easier assembly and maintenance
• Suitable for custom agricultural UAV development

Package Includes

• 1 × EFT E416P Agricultural Drone Frame
• 1 × 16L Chemical Tank
• Foldable Arm Assembly
• Landing Gear
• Mounting Hardware

Installation Guidelines

• Assemble the frame according to the manufacturer's instructions.
• Install compatible motors, ESCs, propellers, battery, and flight controller.
• Mount the spraying system securely and verify all connections.
• Ensure the center of gravity is balanced before flight.
• Check all arm locking mechanisms prior to operation.
• Perform flight controller and spraying system calibration before use.

Why Choose the EFT E416P?

The EFT E416P offers a robust and configurable platform for building agricultural spraying drones. Its 16-liter tank capacity, 4-axis quadcopter design, foldable structure, and durable carbon fiber construction make it suitable for precision agriculture, crop spraying, and custom UAV development. Whether used by agricultural service providers, drone manufacturers, or research organizations, the E416P provides a reliable foundation for integrating professional agricultural drone systems.
