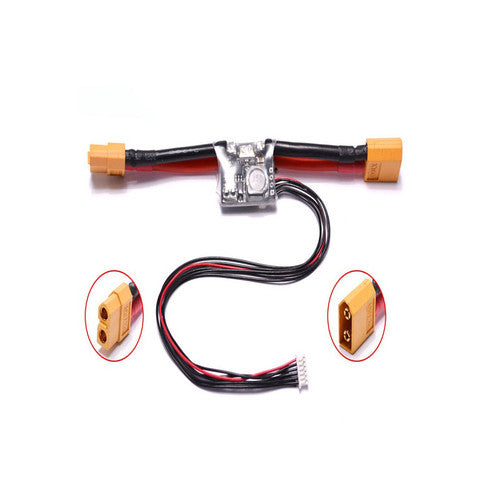

Readytosky APM/Pixhawk Power Module – Precision Voltage & Current Sensing
Give your flight controller a clean, reliable "heartbeat" with the Readytosky Power Module. Specially designed for the APM 2.6, 2.8, and Pixhawk series, this module serves a dual purpose: it acts as a high-efficiency switching regulator to power your electronics and a high-precision sensor to monitor your battery’s health in real-time.
By integrating a 5.3V switching regulator and a 90A current sensor into a single XT60-equipped unit, this module eliminates the need for messy external BECs and voltage dividers. It allows your flight controller to trigger "Low Battery" failsafes and monitor live mAh consumption, ensuring you never push your LiPo packs too far.
Key Highlights:
-
Dual-Function Design: Simultaneously regulates power to your flight controller while sending precise voltage and current data to your OSD or telemetry link.
-
High-Voltage Support: Safely handles up to 28V (6S LiPo), making it compatible with everything from small 3S trainers to heavy-lift 6S endurance rigs.
-
Plug-and-Play for ArduPilot: Features a standard 6-pin DF13 cable that plugs directly into the "PM" port of your APM or Pixhawk—no soldering or custom mapping required.
-
Robust 3A Output: The switching regulator provides a stable 5.3V at up to 3A, offering plenty of overhead to power your FC, GPS, and low-power telemetry modules.
-
Factory Protected: The unit comes pre-wrapped in high-quality transparent shrink tubing to prevent accidental shorts against carbon fiber frames.
Technical Specifications
| Feature |
Details |
| Brand |
Readytosky |
| Max Input Voltage |
28V (Up to 6S LiPo) |
| Max Current Sensing |
90A |
| Voltage/Current Output |
Configured for 5V ADC |
| Switching Regulator |
5.3V @ 3A Max |
| Connectors |
XT60 (Male/Female) |
| Cable Interface |
6-pos DF13 |
Installation Note:
The Power Module is designed only to power the flight controller, a receiver, and low-power accessories (GPS, Telemetry). It is not intended to power servos. If your aircraft uses servos, please use a separate BEC or ESC to power the output rail of your flight controller.
