Amass XT90PW30 Male Connector – XT90PW-M.G.Y Original Drone Connectors

Product Description

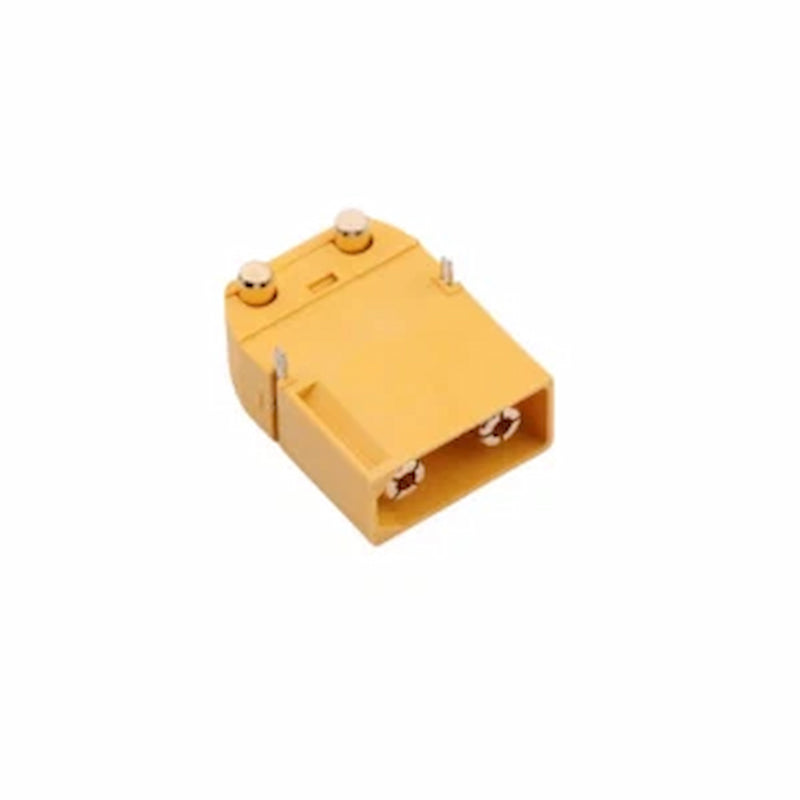

The Amass XT90PW30 Male Connector (XT90PW-M.G.Y) is a premium PCB-mounted right-angle high-current DC power connector designed for secure and efficient power transmission in agriculture drones, industrial UAVs, robotics, battery management systems, RC aircraft, electric vehicles, power distribution boards, and industrial electronic equipment. Manufactured by Amass, a globally recognized leader in connector technology, the XT90PW series combines the trusted XT90 interface with a 90-degree PCB mounting design, making it ideal for compact electronic systems where space optimization and reliable power delivery are essential.

The XT90PW-M.G.Y Male Connector features precision gold-plated brass contacts that provide excellent electrical conductivity, ultra-low contact resistance, and efficient current transfer. The premium gold plating minimizes voltage drop and heat generation while offering superior resistance to oxidation and corrosion, ensuring stable electrical performance and long service life even in demanding operating environments.

Designed for right-angle PCB mounting, the XT90PW30 connector uses a through-hole (THT) solder mounting configuration, allowing it to be securely installed directly onto printed circuit boards. The right-angle design enables horizontal cable routing, improves space utilization inside compact enclosures, and reduces mechanical stress on PCB-mounted connectors. This makes it an excellent solution for battery management systems, charging stations, UAV electronics, embedded systems, and industrial control equipment.

The connector is rated for 30A continuous current and supports up to 90A peak current with a 500V DC voltage rating, making it suitable for medium- and high-power applications. It accommodates 8–12 AWG wire and provides reliable, low-loss power transmission for battery packs, ESCs, power distribution boards, and high-performance electronic systems.

The housing is manufactured from high-temperature PA (Polyamide/Nylon) with a UL94 V-0 flame-retardant rating, providing excellent insulation, heat resistance, and mechanical durability. Its rugged construction resists vibration, impact, and continuous electrical loading, making it suitable for demanding outdoor and industrial environments. With approximately 1,000 mating cycles, the XT90PW connector offers dependable long-term performance.

Whether you're designing a UAV power distribution board, integrating a lithium battery system, building an industrial controller, or developing custom power electronics, the Amass XT90PW30 Male Connector delivers professional-grade reliability, efficient power transfer, and space-saving PCB integration.

Key Features

• Genuine Amass XT90PW-M.G.Y Male Connector
• Right-angle PCB-mounted high-current DC power connector
• Through-hole (THT) PCB mounting
• Premium gold-plated brass contacts
• Low contact resistance for efficient power transfer
• Rated for 30A continuous current
• Supports 90A peak current
• Rated for 500V DC
• High-temperature PA (Polyamide/Nylon) UL94 V-0 flame-retardant housing
• Supports 8–12 AWG wire
• Excellent resistance to heat, vibration, and corrosion
• Long mechanical life of approximately 1,000 mating cycles

Applications & Use Cases

The Amass XT90PW30 Male Connector is widely used in:

• Agriculture drones and industrial UAVs
• Battery Management Systems (BMS)
• Power Distribution Boards (PDBs)
• Lithium-ion and LiPo battery systems
• Electric vehicles (EVs) and e-bikes
• Robotics and industrial automation
• Industrial power supplies
• Battery charging stations
• Embedded electronic equipment
• RC aircraft, boats, cars, and helicopters
• DIY electronics and custom PCB projects
• High-current power distribution systems

Technical Specifications

• Brand: Amass
• Model: XT90PW-M.G.Y
• Connector Type: Male
• Series: XT90PW30
• Number of Pins: 2
• Mounting Type: Right-angle PCB Through-Hole (THT)
• Contact Material: Gold-plated brass
• Housing Material: PA (Polyamide/Nylon), UL94 V-0 flame-retardant
• Rated Current: 30A Continuous
• Peak Current: 90A
• Rated Voltage: 500V DC
• Recommended Wire Size: 8–12 AWG
• Contact Resistance: ≤0.4mΩ
• Mechanical Life: Approximately 1,000 mating cycles
• Operating Temperature: -20°C to 120°C
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT90PW30 Male Connector is an excellent choice for engineers, drone manufacturers, and electronics professionals who require a compact right-angle PCB-mounted high-current connector with dependable electrical performance. Its space-saving 90-degree design simplifies PCB layouts while the gold-plated contacts ensure efficient power transfer and long-term reliability.

Compared to standard cable-mounted XT90 connectors, the XT90PW series offers cleaner PCB integration, optimized cable routing, improved mechanical stability, and simplified assembly, making it an ideal solution for battery management systems, industrial electronics, robotics, and professional UAV applications.

Package Includes

• 1 × Amass XT90PW30 Male Connector (XT90PW-M.G.Y)
