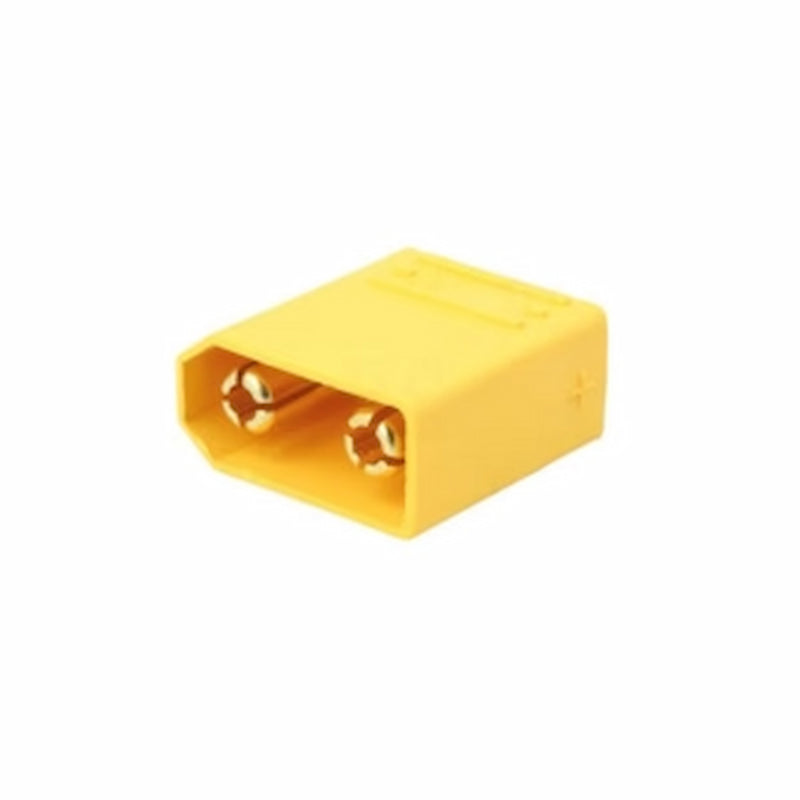

Amass XT90PB30 Male Connector – XT90PB-M.G.Y Original Drone Connectors

Product Description

The Amass XT90PB30 Male Connector (XT90PB-M.G.Y) is a premium PCB-mounted high-current DC power connector designed for reliable power transmission in agriculture drones, industrial UAVs, robotics, battery management systems, RC vehicles, electric mobility systems, and industrial electronic equipment. Manufactured by Amass, a globally trusted connector brand, the XT90PB series combines the proven XT90 interface with a vertical PCB mounting design, making it ideal for applications requiring a secure board-mounted high-power connection.

The XT90PB-M.G.Y Male Connector features precision gold-plated brass contacts, providing excellent electrical conductivity, low contact resistance, and efficient power transfer. The premium gold plating minimizes voltage drop and heat generation while offering superior resistance to oxidation and corrosion, ensuring dependable long-term performance in demanding environments.

Designed for PCB-mounted power systems, the XT90PB30 connector uses a through-hole vertical (THT) mounting configuration, allowing direct installation onto printed circuit boards. This design provides a strong mechanical connection, simplifies PCB assembly, and is ideal for power distribution boards, charging stations, battery management systems, and embedded electronic equipment.

The connector supports 40A continuous current and operates at up to 500V DC, making it suitable for medium- to high-power applications such as drone power systems, industrial automation, and lithium battery integration. Its compact yet rugged construction provides excellent electrical efficiency while maintaining reliable performance under continuous operation.

The housing is manufactured from high-temperature PA (Polyamide/Nylon) with a UL94 V-0 flame-retardant rating, providing excellent insulation, heat resistance, and mechanical durability. Its robust construction resists vibration, mechanical shock, and continuous electrical loading, making it suitable for demanding outdoor and industrial environments.

Whether you're designing a professional UAV, developing a battery charging system, building a power distribution board, or integrating industrial automation equipment, the Amass XT90PB30 Male Connector delivers professional-grade reliability, efficient power transfer, and secure PCB mounting.

Key Features

• Genuine Amass XT90PB-M.G.Y Male Connector
• PCB-mounted high-current DC power connector
• Vertical through-hole (THT) PCB mounting
• Premium gold-plated brass contacts
• Low contact resistance for efficient power transfer
• Rated for 40A continuous current
• Supports 500V DC operation
• High-temperature PA (Polyamide/Nylon) UL94 V-0 flame-retardant housing
• Excellent resistance to heat, vibration, and corrosion
• Secure PCB mounting for reliable installation
• Long mechanical life of approximately 1,000 mating cycles
• Compact and durable construction

Applications & Use Cases

The Amass XT90PB30 Male Connector is widely used in:

• Agriculture drones and industrial UAVs
• Battery Management Systems (BMS)
• Power Distribution Boards (PDBs)
• Lithium-ion and LiPo battery systems
• Electric vehicles (EVs) and e-bikes
• Robotics and automation systems
• Industrial power supplies
• Battery charging stations
• Embedded electronic equipment
• RC aircraft, boats, cars, and helicopters
• DIY electronics and custom PCB projects
• High-current power distribution systems

Technical Specifications

• Brand: Amass
• Model: XT90PB-M.G.Y
• Connector Type: Male
• Series: XT90PB30
• Number of Pins: 2
• Mounting Type: PCB Through-Hole (Vertical/THT)
• Contact Material: Brass, gold flash plated
• Housing Material: PA (Polyamide/Nylon), UL94 V-0 flame-retardant
• Rated Current: 40A Continuous
• Rated Voltage: 500V DC
• Contact Resistance: ≤0.4mΩ
• Mechanical Life: Approximately 1,000 mating cycles
• Operating Temperature: -20°C to 120°C
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT90PB30 Male Connector is an excellent choice for engineers, drone manufacturers, and electronics professionals who require a compact, PCB-mounted high-current connector with dependable electrical performance. Its vertical PCB mounting simplifies board integration, while the gold-plated contacts ensure efficient power transfer and long service life.

Compared to conventional cable-mounted XT90 connectors, the XT90PB series offers cleaner PCB integration, improved mechanical stability, and simplified assembly, making it an ideal solution for battery management systems, power distribution boards, industrial electronics, and professional UAV applications.

Package Includes

• 1 × Amass XT90PB30 Male Connector (XT90PB-M.G.Y)
