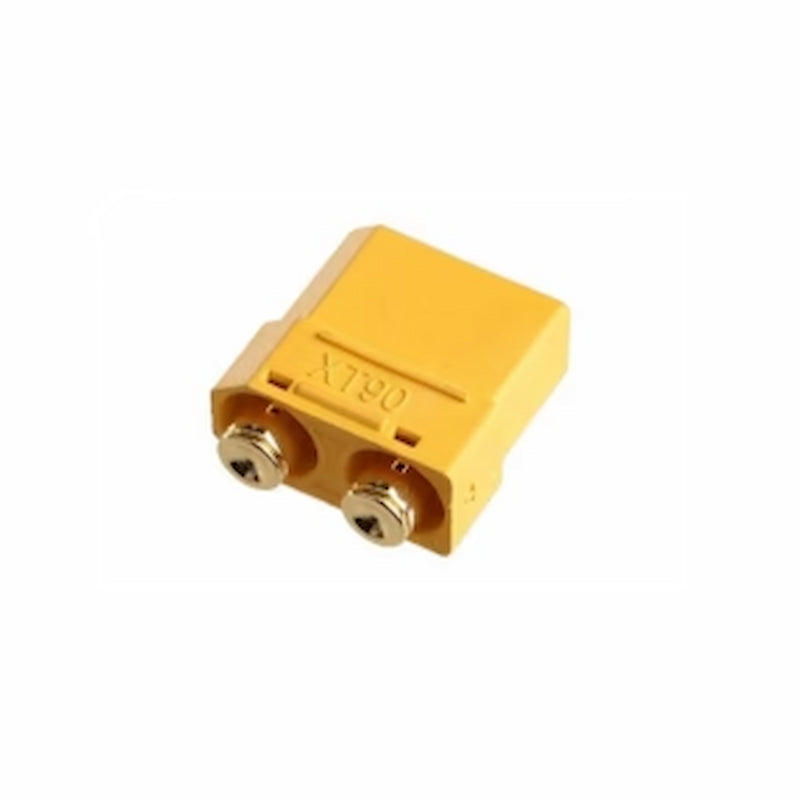

Amass XT90PB30 Female Connector – XT90PB-F.G.Y Original Drone Connectors

Product Description

The Amass XT90PB30 Female Connector (XT90PB-F.G.Y) is a premium PCB-mounted high-current DC power connector designed for reliable and efficient power transmission in agriculture drones, industrial UAVs, robotics, battery management systems, RC aircraft, electric vehicles, power distribution boards, and industrial electronic equipment. Manufactured by Amass, a globally recognized leader in connector technology, the XT90PB series combines the proven XT90 interface with a vertical through-hole PCB mounting design, making it ideal for applications that require a secure board-mounted high-current power connection.

The XT90PB-F.G.Y Female Connector features precision gold-plated brass contacts that provide excellent electrical conductivity and ultra-low contact resistance. The gold-plated contacts reduce voltage drop and heat generation while offering outstanding resistance to corrosion and oxidation, ensuring stable electrical performance and long service life even under demanding operating conditions.

Designed for PCB-mounted power systems, the XT90PB30 connector uses a vertical through-hole (THT) mounting configuration, allowing it to be directly soldered onto printed circuit boards. This design provides excellent mechanical stability while simplifying PCB assembly for battery management systems, charging stations, power distribution boards, and embedded electronic devices.

The connector is rated for 40A continuous current and supports 500V DC operation, making it suitable for medium- to high-power electrical applications. Its compact yet rugged design ensures efficient current transfer while maintaining excellent thermal performance during continuous operation. The connector pairs with compatible XT90 male PCB or cable connectors to provide a secure, vibration-resistant electrical connection.

The housing is manufactured from high-temperature PA66 (Polyamide/Nylon) with a UL94 V-0 flame-retardant rating, providing outstanding insulation, heat resistance, and mechanical durability. Its robust construction withstands vibration, mechanical shock, and harsh operating environments, making it suitable for professional drone systems, industrial automation equipment, and electric mobility applications.

Whether you're designing a UAV power distribution board, integrating a lithium battery system, building an industrial control unit, or developing custom power electronics, the Amass XT90PB30 Female Connector delivers professional-grade reliability, efficient power transfer, and secure PCB integration.

Key Features

• Genuine Amass XT90PB-F.G.Y Female Connector
• PCB-mounted high-current DC power connector
• Vertical through-hole (THT) PCB mounting
• Premium gold-plated brass contacts
• Low contact resistance for efficient power transfer
• Rated for 40A continuous current
• Supports 500V DC operation
• High-temperature PA66 (Polyamide/Nylon) UL94 V-0 flame-retardant housing
• Excellent resistance to heat, vibration, and corrosion
• Secure PCB mounting for reliable installation
• Long mechanical life of approximately 1,000 mating cycles
• Compact and durable construction

Applications & Use Cases

The Amass XT90PB30 Female Connector is widely used in:

• Agriculture drones and industrial UAVs
• Battery Management Systems (BMS)
• Power Distribution Boards (PDBs)
• Lithium-ion and LiPo battery systems
• Electric vehicles (EVs) and e-bikes
• Robotics and automation systems
• Industrial power supplies
• Battery charging stations
• Embedded electronic equipment
• RC aircraft, boats, cars, and helicopters
• DIY electronics and custom PCB projects
• High-current power distribution systems

Technical Specifications

• Brand: Amass
• Model: XT90PB-F.G.Y
• Connector Type: Female
• Series: XT90PB30
• Number of Pins: 2
• Mounting Type: PCB Through-Hole (Vertical/THT)
• Contact Material: Brass, gold flash plated
• Housing Material: PA66 (Polyamide/Nylon), UL94 V-0 flame-retardant
• Rated Current: 40A Continuous
• Rated Voltage: 500V DC
• Contact Resistance: ≤0.4mΩ
• Mechanical Life: Approximately 1,000 mating cycles
• Operating Temperature: -20°C to 120°C
• Protection Rating: IP40

Why Choose This Connector?

The Amass XT90PB30 Female Connector is an excellent choice for engineers, drone manufacturers, and electronics professionals who require a compact, PCB-mounted high-current connector with dependable electrical performance. Its vertical PCB mounting simplifies board integration, while the gold-plated contacts ensure efficient power transfer and long-term reliability.

Compared to conventional cable-mounted XT90 connectors, the XT90PB series offers cleaner PCB integration, improved mechanical stability, and simplified assembly, making it an ideal solution for battery management systems, power distribution boards, industrial electronics, and professional UAV applications.

Package Includes

• 1 × Amass XT90PB30 Female Connector (XT90PB-F.G.Y)
