Diodes

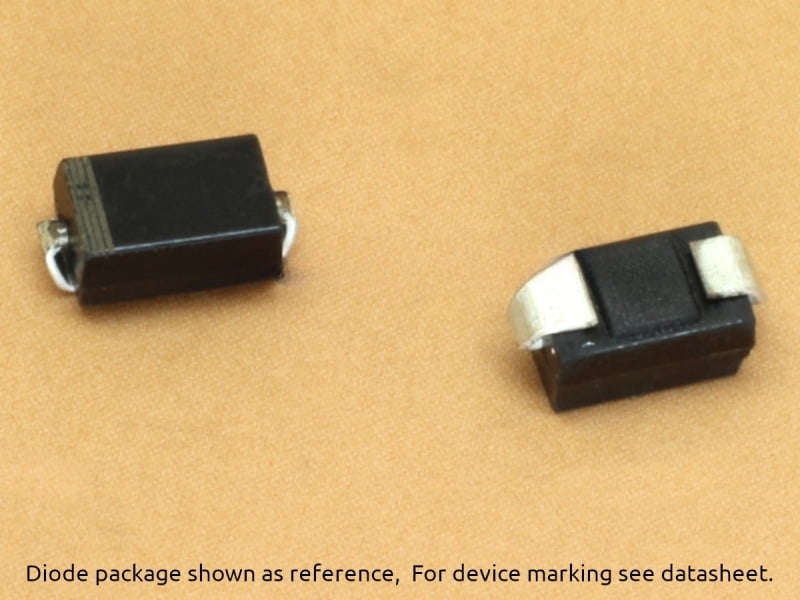

The SS24 SMA Schottky Diode is a high-performance semiconductor component designed for fast switching and low forward voltage drop applications. Ideal for power rectification, voltage clamping, and signal detection, this diode ensures efficient operation in circuits requiring rapid response times. Its reliable construction supports compatibility with a wide range of electronic devices where minimized power loss and enhanced efficiency are critical.

• Low forward voltage drop enhances energy efficiency and reduces heat generation in circuits.
• Fast switching speed supports high-frequency applications and improves overall device performance.
• Robust SMA package enables easy PCB mounting and reliable mechanical stability.
• High surge current capability ensures durability under transient voltage conditions.
• Wide operating temperature range allows consistent function in diverse environments.
• Compatible with various power management circuits including voltage regulators and power supplies.

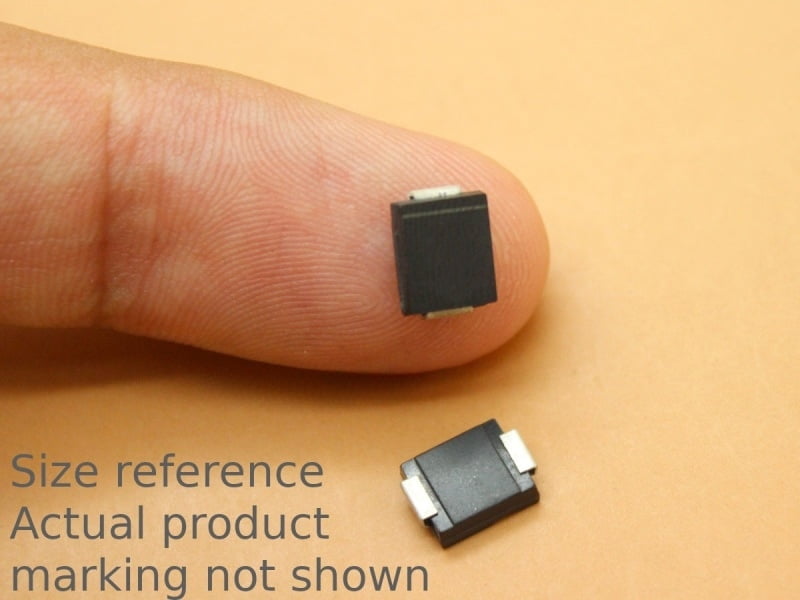

The SS34 DO-214AB (SMC) Big SMD Schottky Diode is designed for efficient low-voltage, high-speed switching applications. Rated for 3 amps and 40 volts, this surface-mount component offers reliable performance with minimal forward voltage drop. Ideal for power supply circuits and voltage clamping, it ensures swift response times and reduced energy loss, making it a versatile choice for electronic assemblies requiring robust diode protection and conduction capabilities.

• 3 ampere current rating supports moderate power loads with stable conduction
• 40 volt maximum reverse voltage safeguards circuits against voltage spikes
• DO-214AB (SMC) package enables compact surface mounting for space-efficient designs
• Low forward voltage drop minimizes power dissipation and enhances efficiency
• Optimized for fast switching, reducing signal distortion in high-frequency circuits
• Compatible with a wide range of power management and voltage regulation systems
• Durable construction ensures consistent performance under various environmental conditions

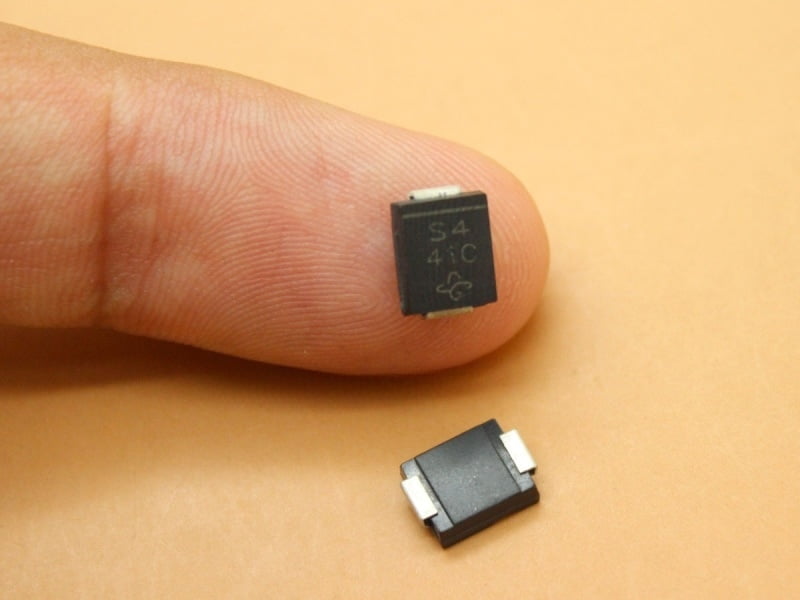

The SS54 SMC SMD is a high-performance Schottky diode designed for efficient rectification in electronic circuits. Rated for 5 amperes and 40 volts, this surface-mount component offers low forward voltage drop and fast switching capabilities. Its robust design ensures compatibility with a variety of applications, including power supplies, voltage clamping, and freewheeling diodes in switching regulators, making it an essential part for reliable and compact circuit designs.

• 5A forward current rating ensures reliable operation under high load conditions
• 40V maximum reverse voltage supports moderate voltage applications with safety margin
• Low forward voltage drop minimizes power loss and enhances energy efficiency
• Compact SMC surface-mount package enables space-saving PCB layouts
• Fast switching speed improves performance in high-frequency circuits
• Ideal for power supply rectification, protection circuits, and voltage clamping
• Robust construction enhances durability in demanding electronic environments

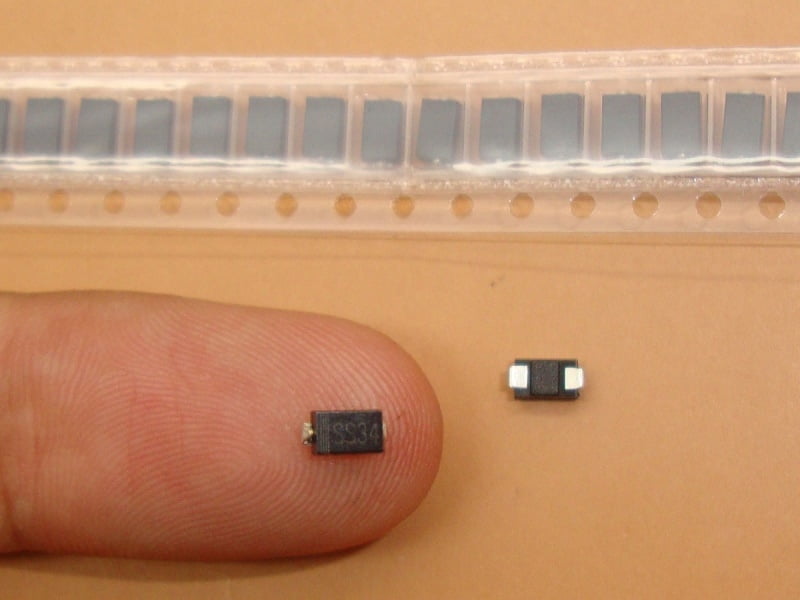

The SS34 SS34A DO-214AC SMA Schottky diode is a compact, surface-mount device designed for efficient rectification in electronic circuits. With a maximum current rating of 3 amps and a voltage tolerance up to 40 volts, it offers reliable performance in power conversion and voltage clamping applications. Its small form factor and SMD packaging make it ideal for tight spaces on printed circuit boards, ensuring compatibility with a wide range of electronic components and systems.

• Handles continuous currents up to 3A for robust power management
• Supports a maximum reverse voltage of 40V, protecting circuits against voltage spikes
• Features a DO-214AC SMA package that simplifies mounting on compact PCBs
• Schottky diode design minimizes forward voltage drop, improving efficiency and reducing heat
• Surface-mount technology enhances assembly speed and reliability in automated production
• Ideal for use in power supplies, voltage clamping, and high-frequency switching circuits
• Compatible with standard industry components for flexible integration
• Durable construction ensures consistent performance in demanding environments

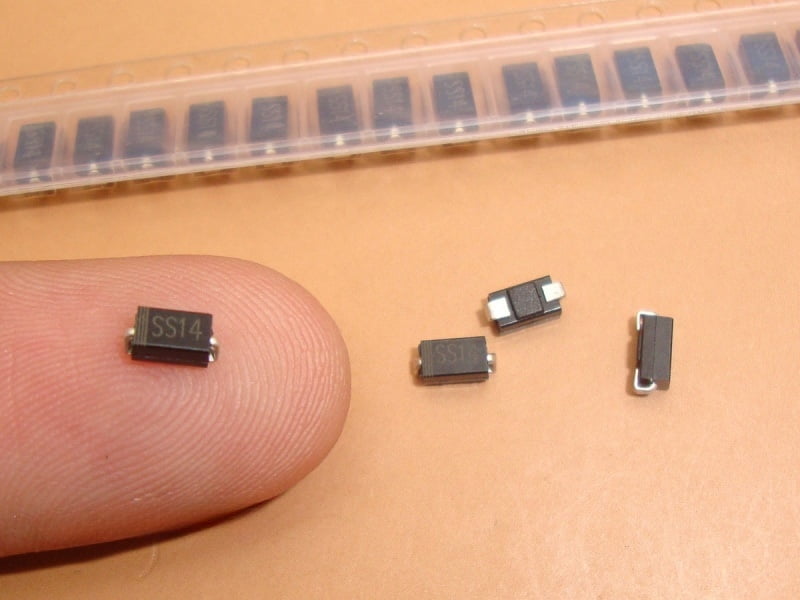

The SS14 SMA DO-214AC 1A 40V Schottky Diode is a compact semiconductor component designed for efficient rectification and voltage protection in electronic circuits. With a maximum forward current of 1 ampere and a voltage rating of 40 volts, it excels in high-speed switching and low forward voltage drop applications. This diode's DO-214AC package ensures easy integration into surface-mount assemblies, making it ideal for power supplies, voltage clamping, and RF applications.

• 1 ampere forward current capacity supports a variety of low to moderate power electronic uses
• 40 volts maximum repetitive peak reverse voltage ensures reliable performance under moderate voltage stress
• Low forward voltage drop reduces energy loss and improves circuit efficiency
• Fast switching speed suitable for high-frequency operations and switching regulators
• DO-214AC surface-mount package allows for compact, automated PCB assembly
• Schottky diode construction provides enhanced efficiency and lower thermal dissipation compared to standard diodes
• Compatible with diverse electronic devices including power supplies, voltage clamps, and RF circuits

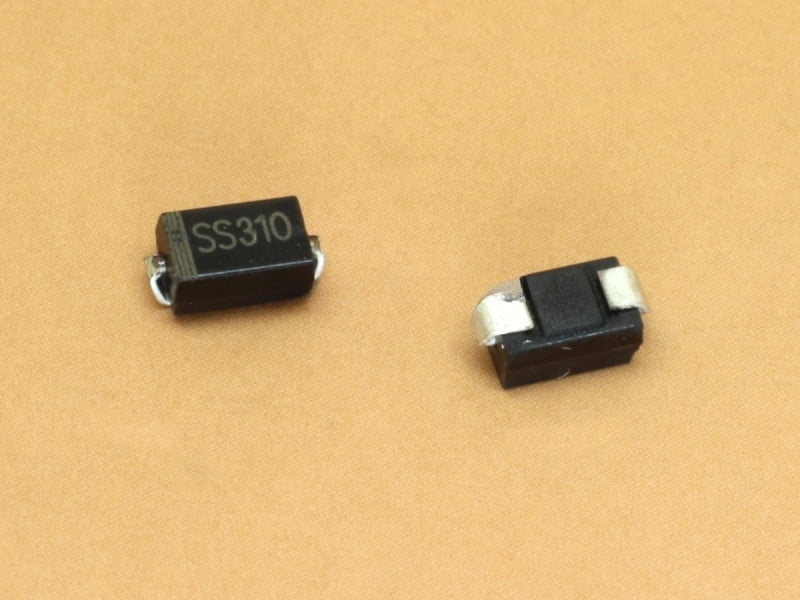

The SS310 and SS310A are high-performance Schottky diodes designed for efficient switching and low forward voltage drop applications. Rated at 100V and 3A, these diodes excel in preventing reverse current in power supplies, voltage clamping, and protection circuits. Packaged in the DO-214AC (SMA) case, they offer reliable thermal management and compatibility with various electronic assemblies, making them ideal for components requiring fast recovery and low power loss.

• 100V maximum reverse voltage ensures robust protection in high-voltage circuits
• 3A continuous forward current supports moderate power applications with efficiency
• DO-214AC (SMA) packaging offers compact size and excellent heat dissipation
• Low forward voltage drop reduces energy loss and improves overall circuit efficiency
• High switching speed suitable for power rectification and voltage clamping tasks
• Compatible with a broad range of power supply and protection circuit designs

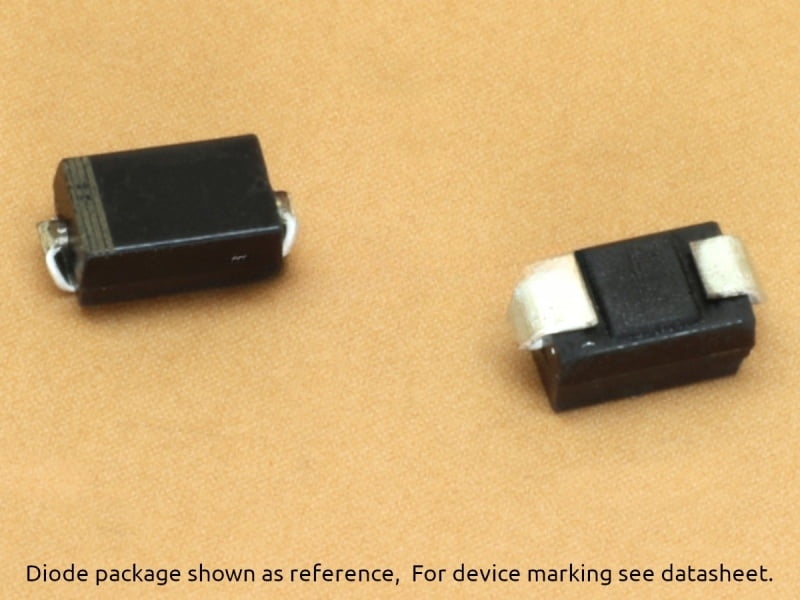

The US2M SMA 2A 1kV High Efficient Rectifier Diode is a reliable semiconductor component designed for efficient electrical rectification. This diode supports up to 2 amperes of current and a maximum voltage of 1,000 volts, making it suitable for various power conversion and voltage regulation applications. Its SMA package ensures easy integration into compact electronic circuits, offering consistent performance in demanding environments where energy efficiency and durability are essential.

• 2 ampere current rating provides stable operation for moderate power loads
• 1,000 volt peak reverse voltage ensures reliable blocking of high voltage spikes
• Compact SMA package fits conveniently into tight circuit layouts
• Designed for high efficiency to minimize power loss in rectification
• Ideal for use in power supplies, voltage regulators, and inverter circuits
• Robust construction supports long-term durability under thermal stress
• Compatible with standard PCB mounting for straightforward assembly

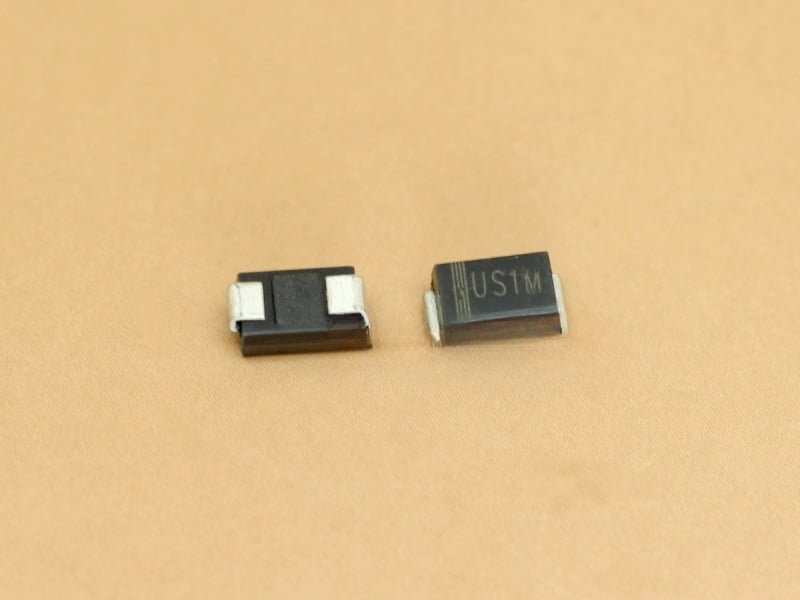

US1M SMA DO-214AC - 1000V 1A Ultrafast Recovery Diode

The US1M SMA DO-214AC is a reliable ultrafast recovery diode designed for efficient switching and rectification in electronic circuits. Rated for 1000 volts and 1 ampere, this component excels in minimizing recovery time to reduce power loss and enhance overall circuit performance. Its SMA DO-214AC package ensures compact installation compatibility with a wide range of power supplies and electronic devices, making it ideal for high-speed switching applications and protective circuits.

• 1000V maximum voltage rating enables use in high-voltage environments safely and reliably.
• 1A forward current capacity supports moderate power handling for various electronic circuits.
• Ultrafast recovery time reduces switching losses and improves efficiency in power conversion.
• Compact DO-214AC SMA package allows space-saving board designs and straightforward integration.
• Designed for high-speed switching and rectification, enhancing performance in power supply and inverter circuits.
• Compatible with standard electronic components and assemblies requiring fast recovery diodes.
• Durable construction provides stable operation under typical electrical stress conditions.

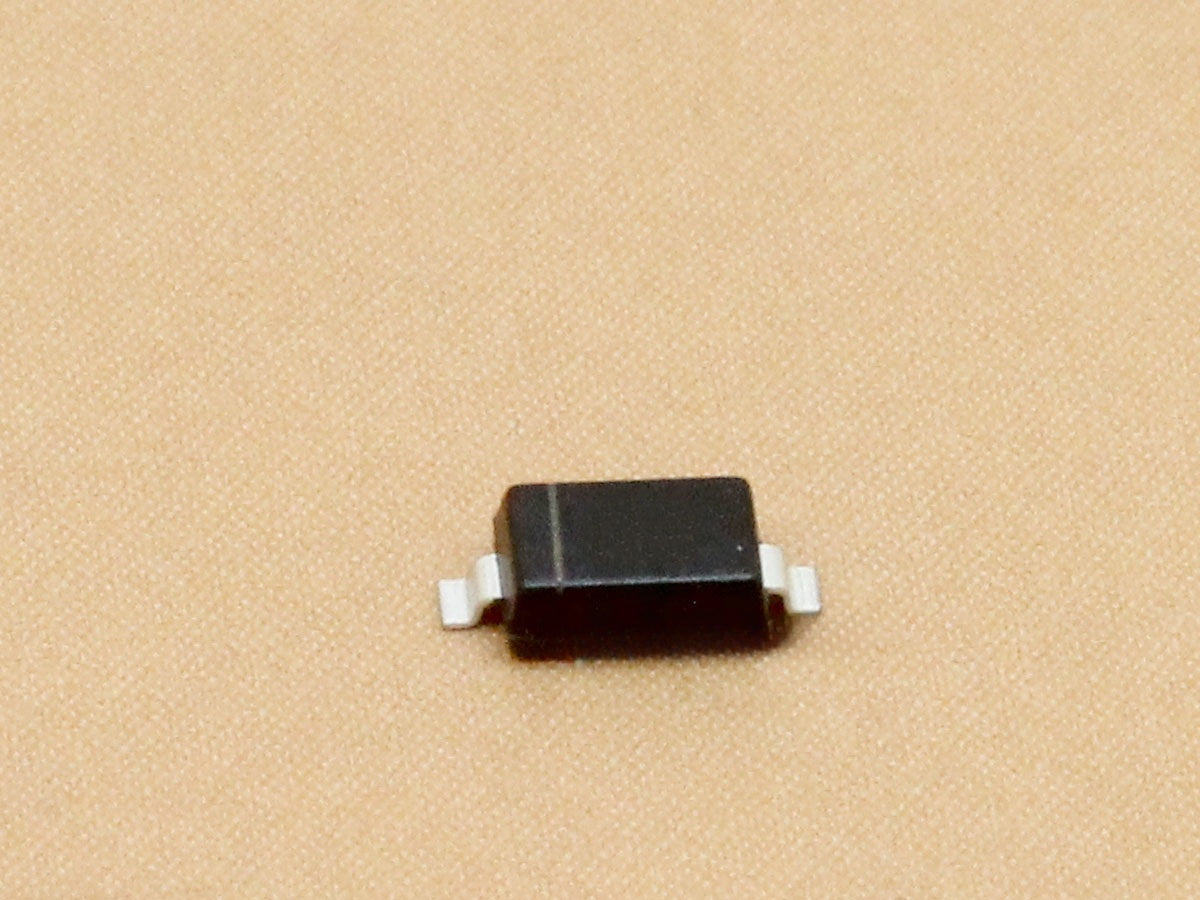

1N5819W Schottky Diode: Efficient Switching and Rectification

This 1N5819W Schottky diode is a high-performance component designed for efficient electronic applications. Featuring a 1A current rating and a 40V breakdown voltage, it excels in switching, AC to DC conversion, and polarity correction tasks within compact SOD123 (1206) packages. Its low forward voltage drop characteristic ensures minimal power loss, making it ideal for power supplies and signal processing circuits where reliability and efficiency are paramount.

• Schottky Barrier Technology: Delivers a low forward voltage drop, significantly reducing power loss and heat generation for enhanced system efficiency.
• 1 Ampere Continuous Current: Reliably handles up to 1A of current, making it suitable for a wide range of moderate power rectification and switching applications.
• 40 Volt PIV Rating: Offers substantial reverse voltage protection, safeguarding circuits from excessive back-voltage up to 40V.
• Versatile Application Use: Excellently suited for general-purpose switching, efficient AC-to-DC rectification, and essential polarity correction functions in electronic designs.
• Compact SOD123 Package: The small SOD123 (also known as 1206) footprint allows for easy integration into space-constrained PCB layouts.
• Fast Switching Capability: Designed for rapid response times, crucial for high-frequency switching power supplies and signal processing circuits.
