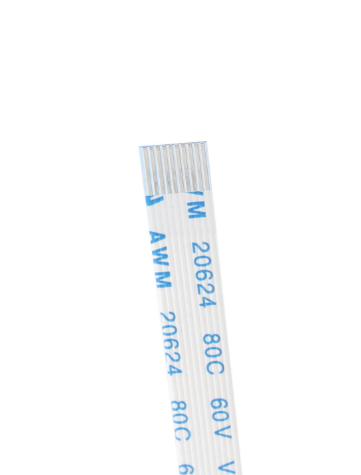

10-Pin FFC Ribbon Cable, 0.5mm Pitch, 380mm Length, Type B (Reverse Side Connection)

Flexible 10 Pin FFC Ribbon Cable for Reverse Connections

Complex circuit designs often require cables with reversed contact points. This 10 Pin FFC Ribbon Cable solves this problem by offering a Type B configuration. It allows for seamless communication between inverted logic boards. Because the cable is highly flexible, it handles intricate routing through tight hinges or pivots.

Reliable 380mm ribbon cable for Custom Builds

Using a 380mm ribbon cable gives you the freedom to place components exactly where you need them. It is particularly useful for external display connections or secondary sensor arrays. Since the contacts are on opposite sides, it crosses signals correctly for specific hardware requirements. This prevents the need for bulky adapters or custom soldering.

Performance and Signal Stability

This cable features a high-grade PET insulation layer for maximum protection. It stays securely in place once inserted into a ZIF or LIF connector. The 0.5mm pitch is manufactured to strict tolerances so that every pin makes perfect contact. It also resists oxidation, ensuring your device remains functional for years to come.

Features & Benefits

• Type B Reverse Side – Ideal for specific flip-top or inverted board designs.

• Long Reach – The 380mm span is perfect for large chassis or external mounts.

• Space Saving – The flat profile allows for routing in gaps thinner than 1mm.

• High Conductivity – Minimizes resistance to ensure fast and accurate data transfer.

Technical Specifications

Compatibility Table

Proper Handling

Handle the 10 Pin FFC Ribbon Cable by the edges to keep the contacts clean. If you are using this 380mm ribbon cable in a moving joint, ensure there is enough slack to prevent tension.
