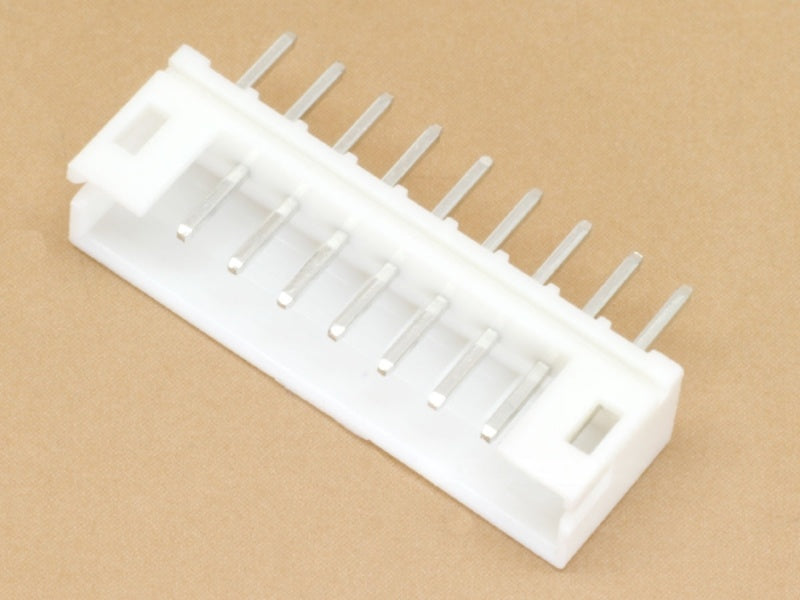

9 pin JST PH 2.0mm Through Hole Header Vertical Straight Top Entry

Product Description

The 9 Pin JST PH 2.0mm Through Hole Header Vertical Straight Top Entry is a high-quality PCB-mounted wire-to-board connector designed to provide secure and reliable electrical connections in compact electronic systems. Featuring a 2.0mm pitch, 9-pin configuration, and vertical straight top-entry design, this connector is ideal for drones, robotics, battery management systems (BMS), IoT devices, sensors, LED lighting, consumer electronics, industrial control systems, and embedded electronics.

Compatible with the JST PH 2.0mm series, this header is designed for through-hole (THT) PCB mounting, providing excellent mechanical strength and long-term durability. The vertical top-entry orientation allows cables to connect directly from above the PCB, making it suitable for applications requiring efficient cable management and vertical board-to-wire connections.

The connector features high-quality copper alloy contacts with tin plating, ensuring low contact resistance, reliable electrical conductivity, and excellent corrosion resistance. Its high-temperature thermoplastic housing offers superior insulation and withstands soldering temperatures, making it suitable for both prototype development and mass production.

Whether you're designing a multi-signal PCB, assembling a drone controller, or building industrial and embedded electronic systems, the 9 Pin JST PH 2.0mm Through Hole Header Vertical Straight Top Entry provides a compact, reliable, and durable wire-to-board connection solution.

Key Features

• JST PH 2.0mm compatible PCB header
• 9-pin wire-to-board connector
• 2.0mm pitch
• Through-hole (THT) PCB mounting
• Vertical straight top-entry design
• Polarized connector prevents incorrect mating
• Tin-plated copper alloy contacts
• High-temperature thermoplastic housing
• Strong mechanical retention after soldering
• Compact and reliable design
• Easy installation and dependable electrical performance

Applications & Use Cases

The 9 Pin JST PH 2.0mm Vertical Header is commonly used in:

• Drones and UAV electronics
• Robotics and automation systems
• Battery Management Systems (BMS)
• IoT devices
• Sensor and control modules
• LED lighting systems
• Consumer electronics
• Embedded systems
• Arduino and Raspberry Pi projects
• Industrial control equipment
• DIY electronics and PCB prototyping

Technical Specifications

• Connector Type: JST PH Compatible Header
• Number of Pins: 9
• Pitch: 2.0mm
• Mounting Type: Through-Hole (THT)
• Orientation: Vertical Straight (Top Entry)
• Contact Material: Copper Alloy
• Contact Plating: Tin Plated
• Housing Material: High-temperature Thermoplastic
• Rated Voltage: 100V AC/DC
• Rated Current: Up to 2A
• Operating Temperature: -25°C to +85°C
• Compatible Connector: JST PH 2.0mm 9-pin Female Housing

Why Choose This Header?

The 9 Pin JST PH 2.0mm Through Hole Header Vertical Straight Top Entry is ideal for applications requiring multiple signal or power connections in a compact PCB layout. Its through-hole construction provides excellent mechanical stability, while the polarized design ensures secure and reliable mating. Suitable for drones, robotics, industrial electronics, and embedded systems, it delivers consistent performance and long-term durability.

Package Includes

• 1 × 9 Pin JST PH 2.0mm Through Hole Header Vertical Straight Top Entry Connector
