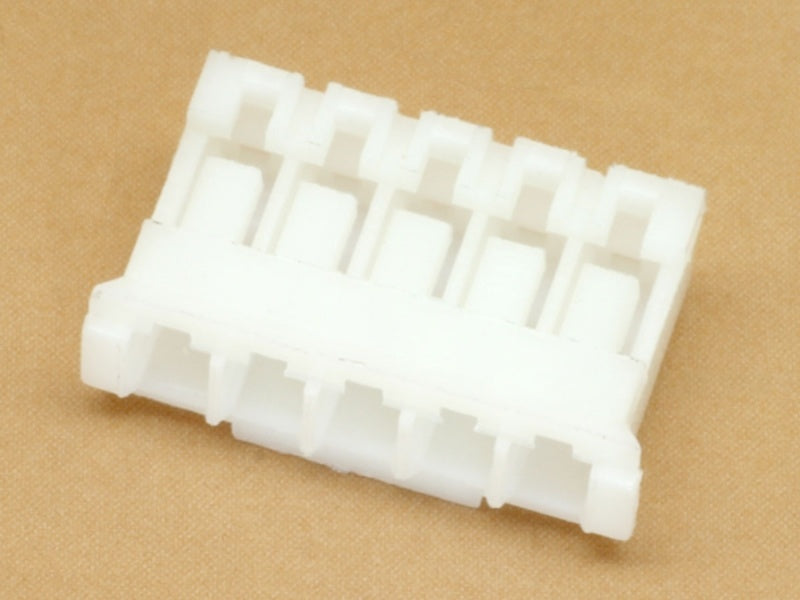

5 pin JST PH 2.0mm Housing

Product Description

The 5 Pin JST PH 2.0mm Housing is a high-quality wire-to-board connector housing designed for secure and reliable electrical connections in compact electronic applications. Compatible with the JST PH 2.0mm series, this 5-pin housing is ideal for use in drones, robotics, battery management systems (BMS), IoT devices, sensors, LED lighting, consumer electronics, and DIY electronics projects.

Designed to accommodate 5 crimp terminals (sold separately), the housing provides a secure, polarized connection that prevents incorrect mating and ensures stable electrical performance. Its compact design makes it suitable for high-density wiring applications where space is limited while maintaining excellent connection reliability.

Manufactured from high-quality PA66 (Nylon) thermoplastic, the housing offers excellent mechanical strength, electrical insulation, and resistance to heat and wear. The locking design securely mates with compatible JST PH 2.0mm 5-pin male headers, minimizing the risk of accidental disconnection caused by vibration or movement.

Whether you're assembling custom wire harnesses, repairing electronic devices, or building embedded systems, the 5 Pin JST PH 2.0mm Housing provides a durable and dependable connector solution.

Key Features

• JST PH 2.0mm compatible housing
• 5-pin wire-to-board connector
• 2.0mm pitch
• Polarized design prevents incorrect insertion
• Compatible with JST PH crimp terminals
• Secure locking mechanism for reliable connections
• High-strength PA66 (Nylon) insulating housing
• Compact design for space-constrained applications
• Easy terminal insertion and assembly
• Durable construction for long service life

Applications & Use Cases

The 5 Pin JST PH 2.0mm Housing is commonly used in:

• Drones and UAV electronics
• Battery Management Systems (BMS)
• Robotics and automation
• IoT devices
• Sensor modules
• LED lighting systems
• Consumer electronics
• Embedded systems
• Arduino and Raspberry Pi projects
• Industrial electronic equipment
• DIY electronics and custom cable assemblies

Technical Specifications

• Connector Type: JST PH Compatible Housing
• Number of Pins: 5
• Pitch: 2.0mm
• Housing Material: PA66 (Nylon)
• Color: White/Natural
• Mounting Style: Wire-to-board
• Terminal Type: Compatible with JST PH crimp terminals (sold separately)
• Compatible Header: JST PH 2.0mm 5-pin male header
• Rated Voltage: 100V AC/DC
• Rated Current: Up to 2A (depending on terminals and wire gauge)
• Operating Temperature: -25°C to +85°C

Why Choose This Housing?

The 5 Pin JST PH 2.0mm Housing is an excellent choice for creating compact and reliable wire harnesses. Its polarized design ensures correct mating, while the durable nylon construction provides long-lasting mechanical strength and electrical insulation. Compatible with standard JST PH terminals and headers, it is ideal for drones, robotics, battery-powered devices, and a wide range of electronic projects.

Package Includes

• 1 × 5 Pin JST PH 2.0mm Housing
