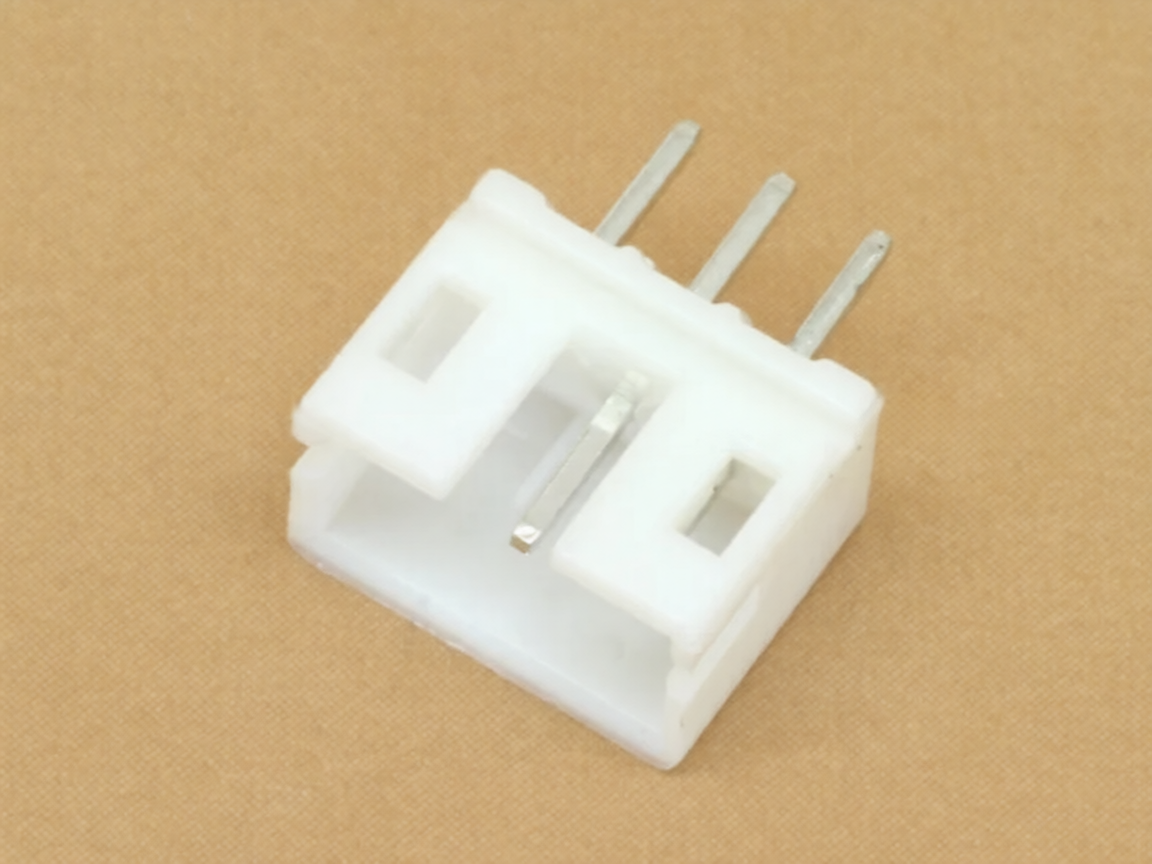

3 pin JST PH 2.0mm Through Hole Header Vertical Straight Top Entry

Product Description

The 3 Pin JST PH 2.0mm Through Hole Header Vertical Straight Top Entry is a high-quality PCB-mounted connector designed for secure, reliable, and compact wire-to-board connections in electronic circuits. Featuring a 2.0mm pitch, 3-pin configuration, and vertical top-entry design, this connector is widely used in consumer electronics, industrial equipment, robotics, IoT devices, battery management systems, LED lighting, and embedded electronics.

Manufactured to match the JST PH series specifications, this through-hole header provides exceptional mechanical strength compared to surface-mount alternatives. The through-hole mounting allows for stronger solder joints, making it suitable for applications exposed to vibration, movement, or repeated cable insertion and removal.

The vertical straight design enables the mating connector to plug in from the top, making PCB layouts cleaner and ideal for space-constrained projects. Its polarized housing ensures correct orientation during installation, reducing the risk of incorrect connections and improving system reliability.

Constructed using durable high-temperature thermoplastic insulation and precision-machined metal contacts, the connector offers excellent electrical conductivity, corrosion resistance, and long service life. It supports stable power and signal transmission in low-voltage electronic applications while maintaining consistent performance over thousands of mating cycles.

Whether you're repairing electronic equipment, designing a custom PCB, prototyping an embedded system, or manufacturing commercial products, this 3 Pin JST PH 2.0mm Through Hole Header delivers dependable performance and professional-quality connections.

Key Features

• 3 Pin JST PH Series compatible connector
• 2.0mm pitch spacing
• Through Hole (THT) PCB mounting
• Vertical Straight Top Entry design
• Secure polarized connection
• Durable thermoplastic housing
• Tin-plated contacts for excellent conductivity
• Strong mechanical retention
• Easy soldering and installation
• Suitable for power and signal applications

Applications & Use Cases

This connector is widely used in numerous electronic and electrical applications, including:

• Battery pack connections
• Lithium-ion battery management systems (BMS)
• Arduino and Raspberry Pi projects
• ESP32 and ESP8266 development boards
• Robotics and automation systems
• Drone electronics
• RC cars, boats, and aircraft
• LED lighting controllers
• 3D printers
• CNC machines
• Industrial control boards
• Smart home automation devices
• IoT hardware development
• Medical electronic equipment
• Consumer electronics
• Sensor modules
• Display modules
• Power supply circuits
• Embedded system development
• Electronic repair and PCB maintenance

Technical Specifications

• Connector Series: JST PH Compatible
• Number of Pins: 3
• Pitch: 2.0mm
• Mounting Type: Through Hole (THT)
• Orientation: Vertical
• Entry Type: Top Entry
• Contact Material: Copper Alloy
• Contact Finish: Tin Plated
• Housing Material: High Temperature Thermoplastic
• Application: Wire-to-Board Connection

Why Choose This Connector?

The 3 Pin JST PH 2.0mm Through Hole Header is engineered for engineers, hobbyists, repair technicians, and electronics manufacturers who require dependable board-to-wire connectivity. Its through-hole construction provides superior solder strength, making it ideal for long-term use in demanding environments. The compact size helps save PCB space while ensuring reliable electrical performance.

Whether you're assembling a prototype or producing electronic products in volume, this connector offers excellent durability, consistent fitment, and dependable electrical contact.

Package Includes

• 1 × 3 Pin JST PH 2.0mm Through Hole Header Vertical Straight Top Entry
