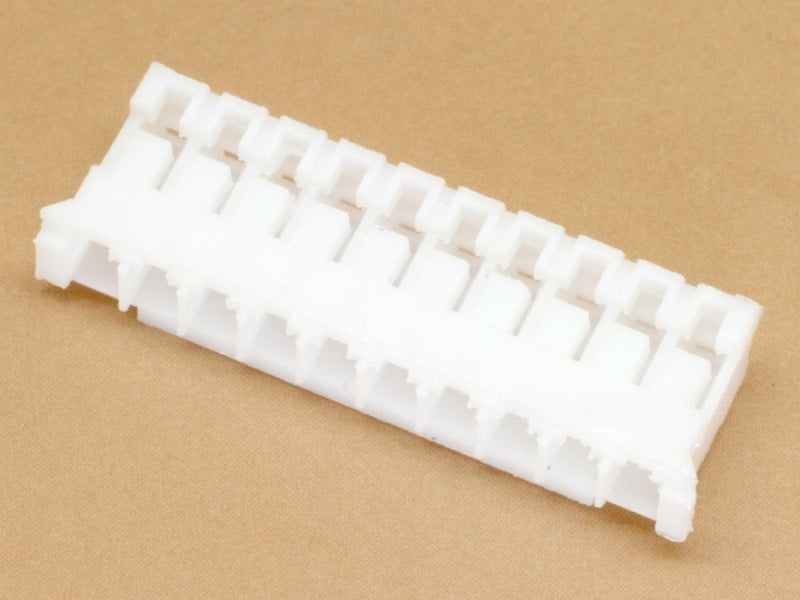

10 pin JST PH 2.0mm Housing

Product Description

The 10 Pin JST PH 2.0mm Housing is a high-quality wire-to-board connector housing designed for secure and reliable electrical connections in compact electronic applications. Compatible with the JST PH 2.0mm series, this 10-pin housing is ideal for use in drones, robotics, battery management systems (BMS), IoT devices, sensors, LED lighting, consumer electronics, and DIY electronics projects.

Designed to accommodate 10 crimp terminals (sold separately), the housing provides a secure, polarized connection that prevents incorrect mating and ensures stable electrical performance. Its compact design makes it suitable for high-density wiring applications where space is limited while maintaining excellent connection reliability.

Manufactured from high-quality PA66 (Nylon) thermoplastic, the housing offers excellent mechanical strength, electrical insulation, and resistance to heat and wear. The locking design securely mates with compatible JST PH 2.0mm 10-pin male headers, minimizing the risk of accidental disconnection caused by vibration or movement.

Whether you're assembling custom wire harnesses, repairing electronic devices, or building embedded systems, the 10 Pin JST PH 2.0mm Housing provides a durable and dependable connector solution.

Key Features

• JST PH 2.0mm compatible housing
• 10-pin wire-to-board connector
• 2.0mm pitch
• Polarized design prevents incorrect insertion
• Compatible with JST PH crimp terminals
• Secure locking mechanism for reliable connections
• High-strength PA66 (Nylon) insulating housing
• Compact design for space-constrained applications
• Easy terminal insertion and assembly
• Durable construction for long service life

Applications & Use Cases

The 10 Pin JST PH 2.0mm Housing is commonly used in:

• Drones and UAV electronics
• Battery Management Systems (BMS)
• Robotics and automation
• IoT devices
• Sensor modules
• LED lighting systems
• Consumer electronics
• Embedded systems
• Arduino and Raspberry Pi projects
• Industrial electronic equipment
• DIY electronics and custom cable assemblies

Technical Specifications

• Connector Type: JST PH Compatible Housing
• Number of Pins: 10
• Pitch: 2.0mm
• Housing Material: PA66 (Nylon)
• Color: White/Natural
• Mounting Style: Wire-to-board
• Terminal Type: Compatible with JST PH crimp terminals (sold separately)
• Compatible Header: JST PH 2.0mm 10-pin male header
• Rated Voltage: 100V AC/DC
• Rated Current: Up to 2A (depending on terminals and wire gauge)
• Operating Temperature: -25°C to +85°C

Why Choose This Housing?

The 10 Pin JST PH 2.0mm Housing is an excellent choice for creating compact and reliable wire harnesses. Its polarized design ensures correct mating, while the durable nylon construction provides long-lasting mechanical strength and electrical insulation. Compatible with standard JST PH terminals and headers, it is ideal for drones, robotics, battery-powered devices, and a wide range of electronic projects.

Package Includes

• 1 × 10 Pin JST PH 2.0mm Housing
